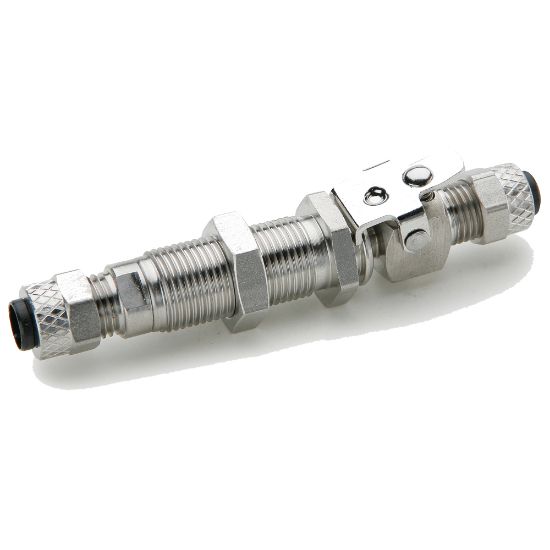

Parker 394PSS-6-6 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 394PSS-6-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	O-Ring Material	Fluorocarbon
Maximum Operating Temperature	150 °F	Maximum Operating Pressure	150 psi
Minimum Operating Temperature	-17 °C	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
Application	Dental, Packaging, Laboratory, Car wash	Nut Material	316 Stainless Steel
Sleeve Material	Acetal Copolymer	Body Material	Stainless Steel
Body Material	316 Stainless Steel	Connection 2 Thread Size (inch)	na
Connection 2 Tube O.D. (inch)	3/8	Connection 1 Style	Compression
Style	Tube to Tube	Connection 2 Style	Compression
Connection 1 Tube O.D. (inch)	3/8	Connection 2 Insert Diameter (inch)	na
Shape	Bulkhead Single end shutoff

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
