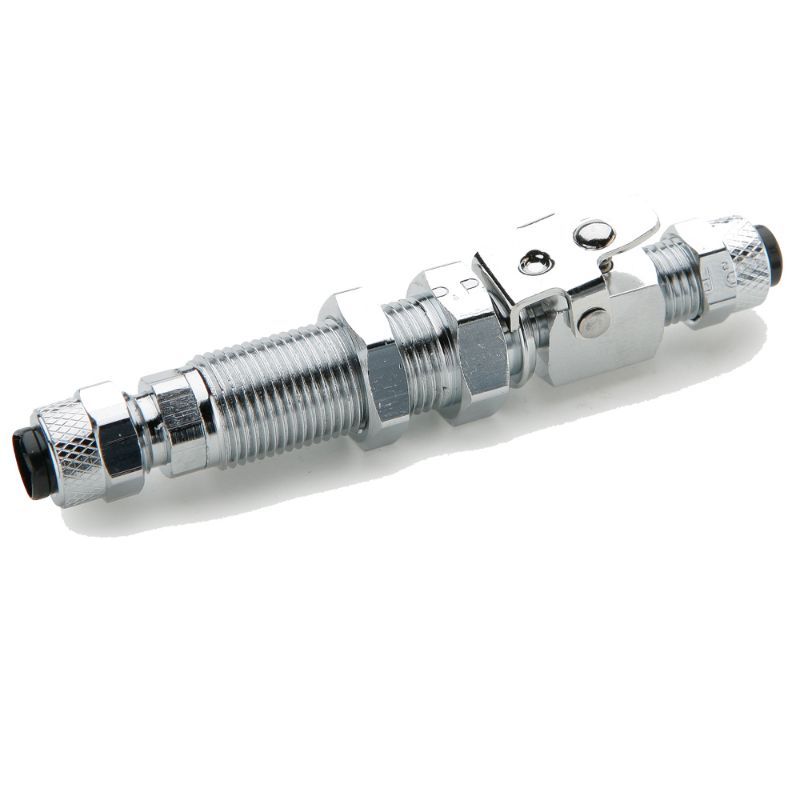

Parker 394P-4-4 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:	Quote Required
Partner Available:	10 In Stock

Brand Parker

Part No. 394P-4-4

$88.65

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Temperature	150 °F	Maximum Operating Pressure	150 psi
Minimum Operating Temperature	-17 °C	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
O-Ring Material	Buna N	Application	Dental, Packaging, Laboratory, Car wash
Nut Material	Chrome Plated Brass	Sleeve Material	Acetal Copolymer
Dimensional Weight	0.034532374100719423 lb	Body Material	Chrome Plated Brass
Connection 2 Thread Size (inch)	na	Connection 1 Style	Compression
Style	Tube to Tube	Connection 2 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Tube O.D. (inch)	1/4
Body Material	Chrome Plated Brass	Connection 2 Insert Diameter (inch)	na
Shape	Bulkhead Single end shutoff
