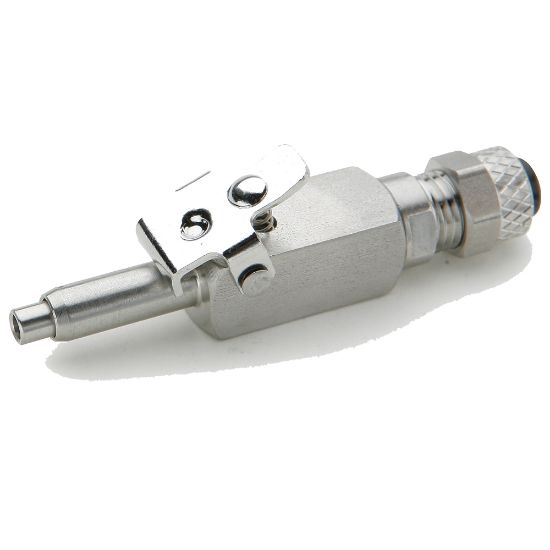

Parker 393PDSS-4-4 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 393PDSS-4-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	O-Ring Material	Fluorocarbon
Maximum Operating Temperature	65 °C	Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-17 °C	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
Dimensional Weight	2.7594424460431655 lb	Application	Dental, Packaging, Laboratory, Car wash
Nut Material	316 Stainless Steel	Sleeve Material	Acetal Copolymer
Body Material	Stainless Steel	Body Material	316 Stainless Steel
Connection 2 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Shape	Shut-off Type Insert	Style	Tube to Plug-in stem
Connection 2 Style	Plug-in Stem	Connection 2 Insert Diameter (inch)	1/4
