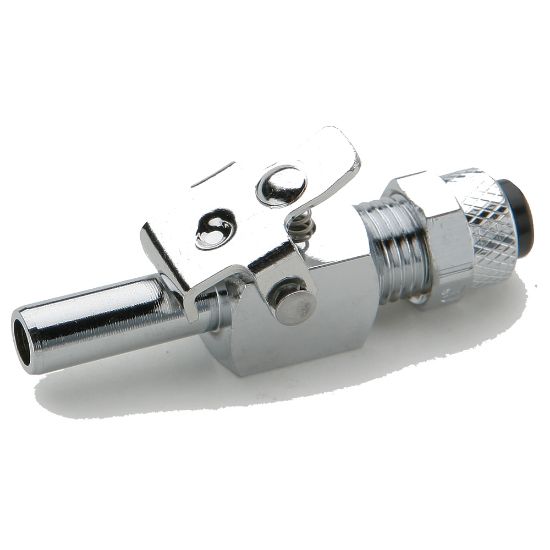

Parker 393P-6-6 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:	Quote Required
Partner Available:	33 In Stock

Brand Parker

Part No. 393P-6-6

$37.76

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Temperature	65 °C	Maximum Operating Pressure	150 psi
Dimensional Weight	0.5518884892086331 lb	Minimum Operating Temperature	-17 °C
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl	O-Ring Material	Buna N
Application	Dental, Packaging, Laboratory, Car wash	Nut Material	Chrome Plated Brass
Sleeve Material	Acetal Copolymer	Body Material	Chrome Plated Brass
Connection 2 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	3/8
Body Material	Chrome Plated Brass	Shape	Through Type Insert
Style	Tube to Plug-in stem	Connection 2 Style	Plug-in Stem
Connection 2 Insert Diameter (inch)	3/8
