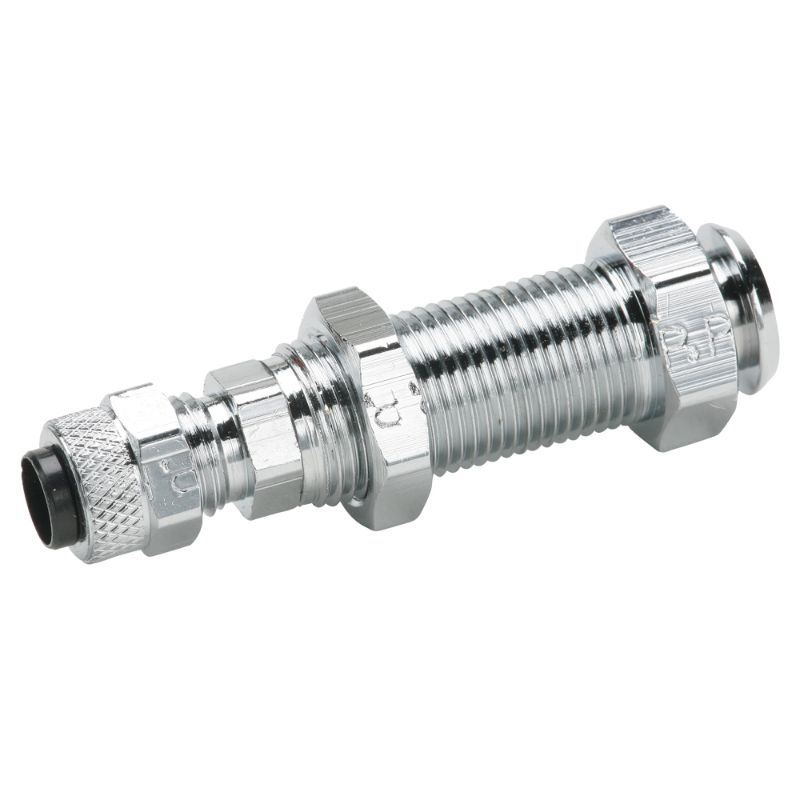

Parker 392P-4-4 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

AFP Availability:	Quote Required
Partner Available:	191 In Stock

Brand Parker

Part No. 392P-4-4

$58.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Chrome Plated Brass
Minimum Operating Temperature	0 °F	Application	Dental, Packaging, Laboratory, Car wash
Division	Fluid System Connectors Division	O-Ring Material	Buna N
Maximum Operating Temperature	65 °C	Nut Material	Chrome Plated Brass
Dimensional Weight	0.5518884892086331 lb	Sleeve Material	Acetal Copolymer
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl	Maximum Operating Pressure	150 psi
Connection 2 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Body Material	Chrome Plated Brass	Shape	Bulkhead Body
Style	Tube to Plug-in stem	Connection 2 Style	Plug-in Stem
Connection 2 Insert Diameter (inch)	1/4
