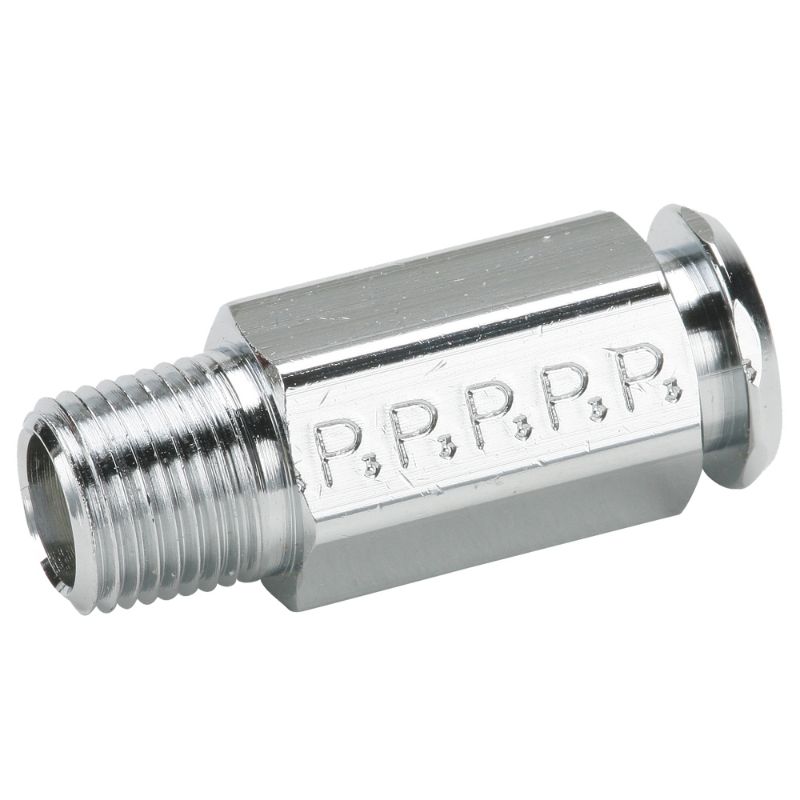

Parker 391P-4-2 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:	Quote Required
Partner Available:	48 In Stock

Brand Parker

Part No. 391P-4-2

$30.08

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Minimum Operating Temperature	0 °F	Maximum Operating Temperature	150 °F
Maximum Operating Pressure	10 bar	Dimensional Weight	0.5518884892086331 lb
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl	Application	Car Washing
O-Ring Material	Buna N	Nut Material	Chrome Plated Brass
Sleeve Material	Acetal Copolymer	Body Material	Chrome Plated Brass
Connection 2 Thread Size (inch)	1/8	Connection 2 Tube O.D. (inch)	na
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Style	Male Pipe
Body Material	Chrome Plated Brass	Shape	Coupler Body
Style	Plug-in stem to Pipe	Connection 1 Style	Plug-in Stem
Connection 2 Insert Diameter (inch)	na
