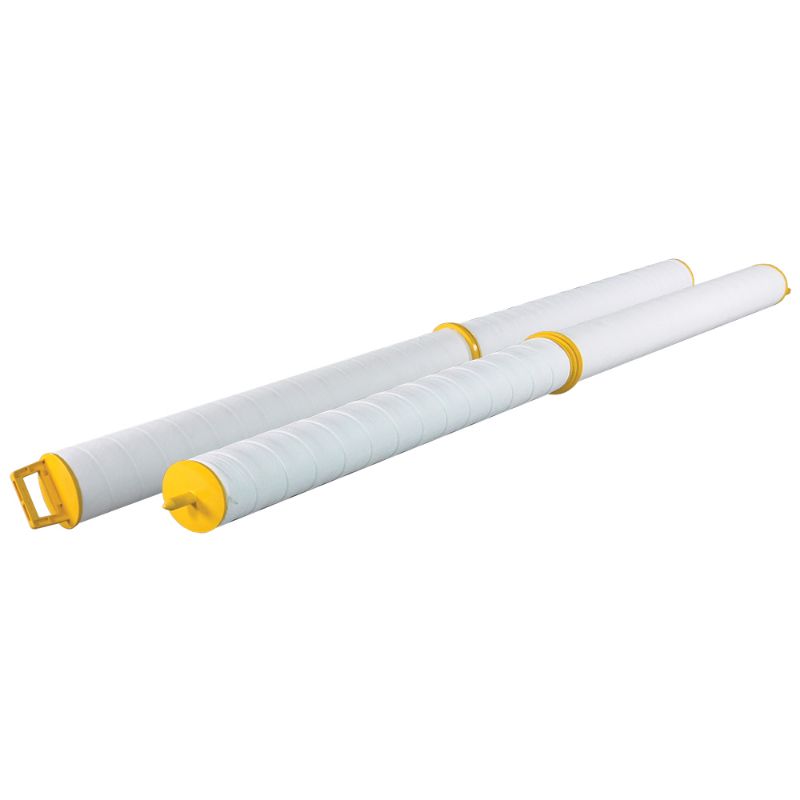

Parker 39000 - PEACH® GEMINI PGC & PGC2 Gas Filter-Coalescer Cartridge

PEACH® Gemini Series PGC & PGC2 depth style gas filter-coalescer used to provide ultra-clean gas with high efficiency removal of solid and liquid contaminants down to 0.3 microns.

Availability:	Quote Required
Partner Available:	126 In Stock

Brand Parker

Part No. 39000

$13.11

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Industrial Process Filtration Division
Brand	PECO	Product Type	Filter Cartridge
Division	Industrial Process Filtration Division	Technology	Filtration
Industry	Oil and Gas	Changeout Pressure Differential	12 to 14 psid
Body Material	n/a	Quantity per Box	1
Maximum Pressure Differential	25	Filter Construction	PEACH Depth Clarifier
Micron Rating	0.3	Product Series	PGC2
pH Range	3-9	Core Material	Tin-Plated Steel
Filter Material	Polyester	End Cap Material	Polyester
Maximum Operating Temperature	240 F	Seal Material	Buna-N
Filter Construction	PEACH Depth	Nominal Outside Diameter	4.6"
Flow Direction	Stage 1 Out-In, Stage 2 In-Out	Cartridge Length	82"
End Cap Configuration	Closed both ends	Maximum Pressure Differential	25 PSID
Changeout Pressure Differential	12-14 PSID	Micron Rating	PL-23: 0.3 Solids + 99.98% ≥ 0.1 Liquid Droplets, ≤ 2PPB Effluent
Model Number	ELMT PGC2-382-C PL-23	Product Series	PGC2
