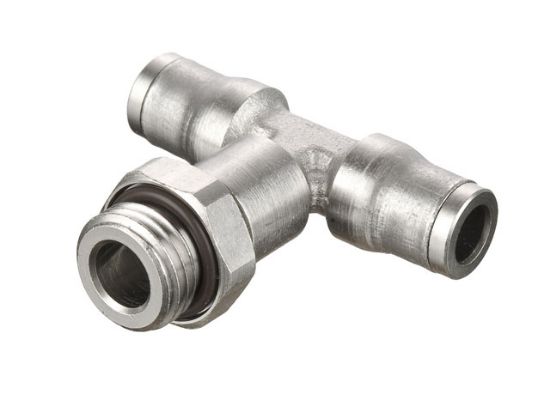

Parker 3898 04 13 - Legris LF3800 Series 3898 - Metric-BSPP/Metric

Metric-BSPP/Metric Male Branch Tee Swivel - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3898 04 13

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Thread 1	1/4 BSPP
Outer Diameter 1	4 mm	Material	Stainless Steel
Trade Name	Legris	Thread 1	1/4 BSPP
Configuration Sub-Type	Male Branch Tee Swivel	Configuration Type	Tube to Male
Pressure Range	7 to 290 psi	Parker Division	Fluid Systems Connector (Brass Products)
Series	Legris LF3800	Parker Group	Fluid Connector
Operating Temperature	-4˚ to +302˚F	Outer Diameter 1 Inch/mm	mm
Outer Diameter 1	4 mm	Inch/Metric	Metric-BSPP/Metric
Material - Seal	FKM Fluoroelastomer	Thread 1 Type	BSPP

Product resources

Legris Push-in Fittings (PDF)
