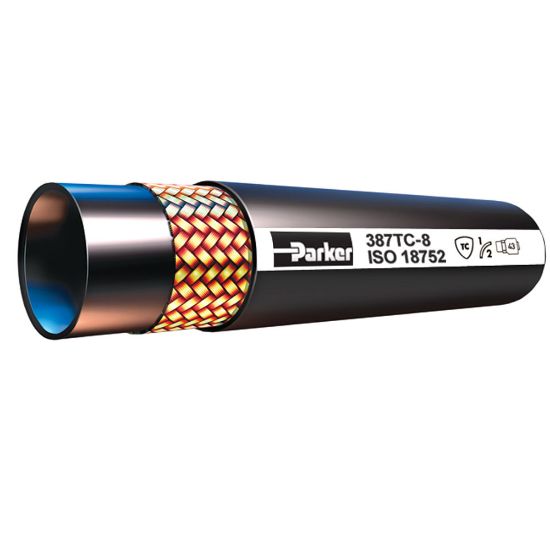

Parker 387-4 - Hydraulic Constant Working Pressure Hose 3000 PSI - GlobalCore 387 Hose

Part of Parker’s GlobalCore constant working pressure hose line, lightweight and flexible 387 hoses consistently deliver 3,000 PSI performance across markets and across the globe.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 387-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	3000 psi	Size	-4
Inside Diameter	1/4 inch	Maximum Operating Temperature	100 °C
Minimum Bend Radius	2 inch	Cover Material	Synthetic Rubber
Hose Cover Type	Standard Cover	Compatible Fitting	43 Series
Hose Inner Tube Material	Synthetic Rubber	Hose Reinforcement Material	1 Braid of Steel Wire
Application	Lubricating Oils	Nominal Hose Inside Diameter	6 mm
Outside Diameter	13.4 mm	Media	Lubricants
Weight	0.24 kg/m	Specifications Met	ISO 18752, Type AC
Hose I.D. (size)	-4	Hose Cover Type	Standard Cover
