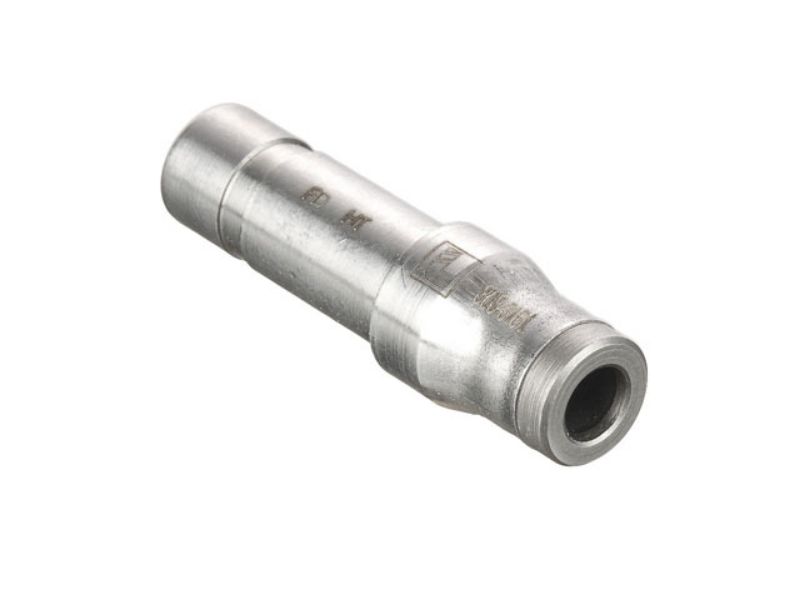

Parker 3866 06 08 - Legris LF3800 Series 3866 - Metric

Metric Plug-in Reducer - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3866 06 08

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Outer Diameter 1	6 mm
Outer Diameter 2	8 mm	Parker Group	Fluid Connector
Material	Stainless Steel	Inch/Metric	Metric
Parker Division	Fluid Systems Connector (Brass Products)	Configuration Type	Tube to Tube
Operating Temperature	-4˚ to +302˚F	Outer Diameter 1 Inch/mm	mm
Pressure Range	7 to 290 psi	Material - Seal	FKM Fluoroelastomer
Trade Name	Legris	Outer Diameter 1	6 mm
Outer Diameter 2	8 mm	Outer Diameter 2 Inch/mm	mm
Configuration Sub-Type	Plug-in Reducer	Series	Legris LF3800

Product resources

Legris Push-in Fittings (PDF)
