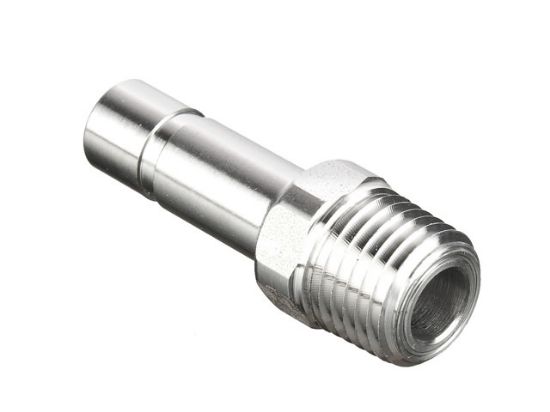

Parker 3821 62 22 - Legris LF3800 Series 3821 - Inch

Inch Male Standpipe - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3821 62 22

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Thread 1	1/2 NPT	Outer Diameter 1	1/2 Inch
UOM	EA	Configuration Sub-Type	Male Standpipe
Parker Division	Fluid Systems Connector (Brass Products)	Series	Legris LF3800
Parker Group	Fluid Connector	Operating Temperature	-4˚ to +302˚F
Material - Seal	FKM Fluoroelastomer	Thread 1 Type	NPT
Outer Diameter 1	1/2 Inch	Trade Name	Legris
Inch/Metric	Inch	Outer Diameter 1 Inch/mm	Inch
Material	Stainless Steel	Configuration Type	Tube to Male
Thread 1	1/2 NPT	Pressure Range	7 to 290 psi

Product resources

Legris Push-in Fittings (PDF)
