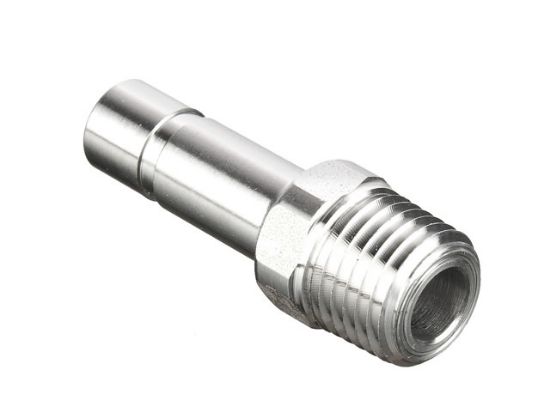

Parker 3821 12 14 - Legris LF3800 Series 3821 - Metric-Inch

Metric-Inch Male Standpipe - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3821 12 14

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Thread 1	1/4 NPT	Outer Diameter 1	12 mm
UOM	EA	Pressure Range	7 to 290 psi
Material	Stainless Steel	Configuration Type	Tube to Male
Trade Name	Legris	Parker Division	Fluid Systems Connector (Brass Products)
Configuration Sub-Type	Male Standpipe	Series	Legris LF3800
Parker Group	Fluid Connector	Outer Diameter 1 Inch/mm	mm
Operating Temperature	-4˚ to +302˚F	Inch/Metric	Metric-Inch
Outer Diameter 1	12 mm	Thread 1	1/4 NPT
Material - Seal	FKM Fluoroelastomer	Thread 1 Type	NPT

Product resources

Legris Push-in Fittings (PDF)
