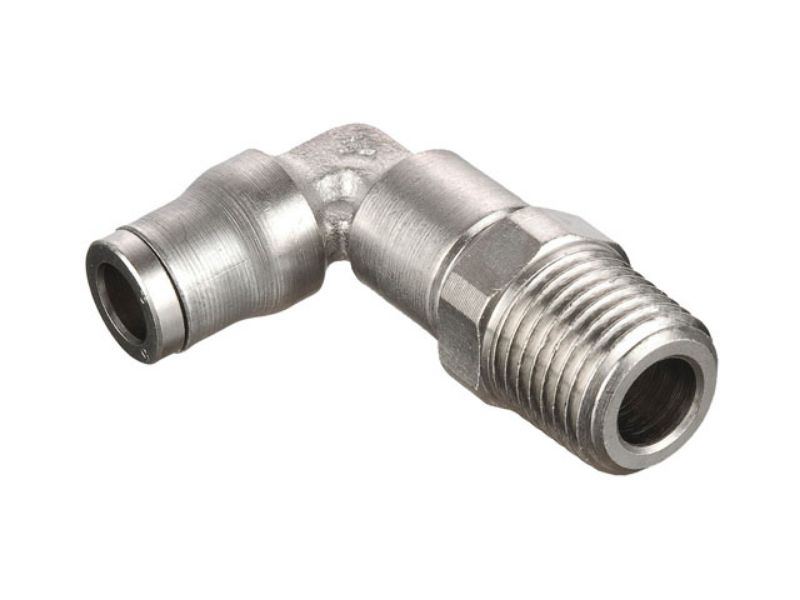

Parker 3809 06 11 - Legris LF3800 Series 3809 - Metric-Inch

Metric-Inch Male Elbow Extended 90° - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3809 06 11

$83.90

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Thread 1	1/8 NPT	Outer Diameter 1	6 mm
Parker Group	Fluid Connector	Material	Stainless Steel
Parker Division	Fluid Systems Connector (Brass Products)	Configuration Type	Tube to Male
Thread 1	1/8 NPT	Thread 1 Type	NPT
Configuration Sub-Type	Male Elbow Extended 90°	Operating Temperature	-4˚ to +302˚F
Outer Diameter 1 Inch/mm	mm	Pressure Range	7 to 290 psi
Material - Seal	FKM Fluoroelastomer	Trade Name	Legris
Outer Diameter 1	6 mm	Inch/Metric	Metric-Inch
Series	Legris LF3800

Product resources

Legris Push-in Fittings (PDF)
