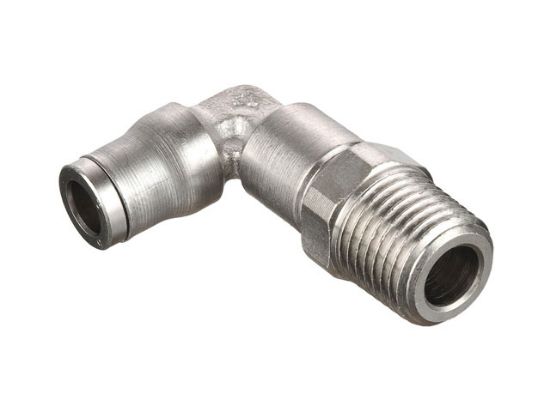

Parker 3809 04 11 - Legris LF3800 Series 3809 - Metric-Inch

Metric-Inch Male Elbow Extended 90° - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3809 04 11

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Thread 1	1/8 NPT	UOM	EA
Outer Diameter 1	4 mm	Material - Seal	FKM Fluoroelastomer
Thread 1 Type	NPT	Trade Name	Legris
Pressure Range	7 to 290 psi	Configuration Type	Tube to Male
Material	Stainless Steel	Series	Legris LF3800
Parker Group	Fluid Connector	Thread 1	1/8 NPT
Configuration Sub-Type	Male Elbow Extended 90°	Parker Division	Fluid Systems Connector (Brass Products)
Inch/Metric	Metric-Inch	Operating Temperature	-4˚ to +302˚F
Outer Diameter 1 Inch/mm	mm	Outer Diameter 1	4 mm
