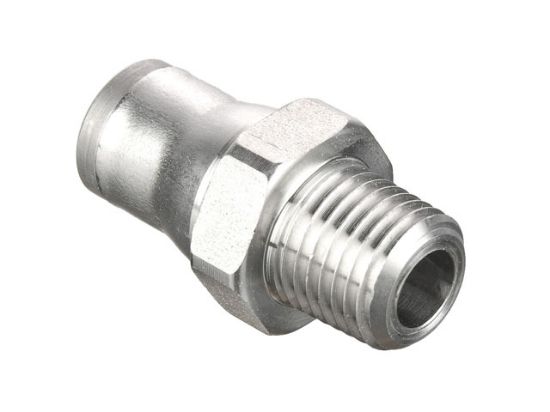

Parker 3805 55 14 - Legris LF3800 Series 3805 - Inch

Inch Male Connector - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3805 55 14

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Thread 1	1/4 NPT
Outer Diameter 1	3/16 Inch	Material	Stainless Steel
Outer Diameter 1	3/16 Inch	Outer Diameter 1 Inch/mm	Inch
Pressure Range	7 to 290 psi	Configuration Type	Tube to Male
Configuration Sub-Type	Male Connector	Parker Division	Fluid Systems Connector (Brass Products)
Series	Legris LF3800	Parker Group	Fluid Connector
Material - Seal	FKM Fluoroelastomer	Operating Temperature	-4˚ to +302˚F
Inch/Metric	Inch	Thread 1	1/4 NPT
Thread 1 Type	NPT	Trade Name	Legris

Product resources

Legris Push-in Fittings (PDF)
