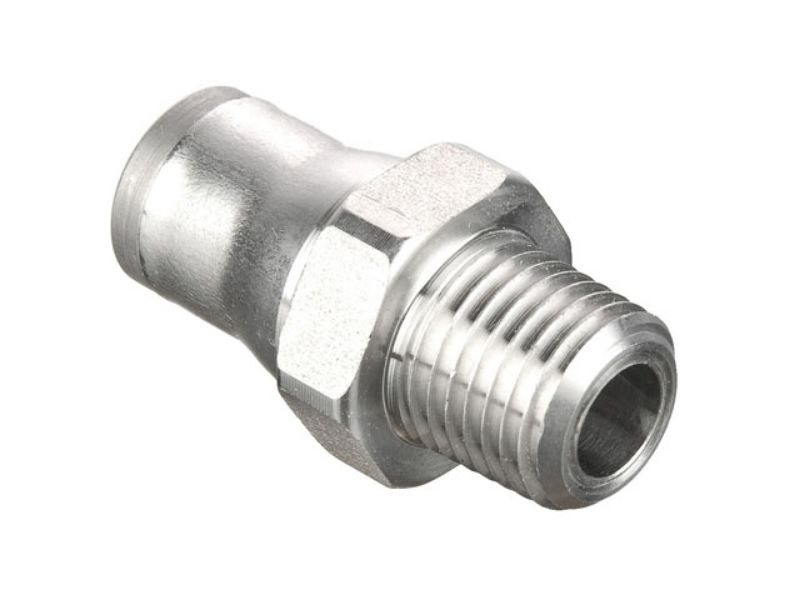

Parker 3805 12 13 - Legris LF3800 Series 3805 - Metric-BSPT

Metric-BSPT Male Connector - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3805 12 13

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Thread 1	1/4 BSPT
Outer Diameter 1	12 mm	Parker Group	Fluid Connector
Material	Stainless Steel	Parker Division	Fluid Systems Connector (Brass Products)
Configuration Type	Tube to Male	Operating Temperature	-4˚ to +302˚F
Outer Diameter 1 Inch/mm	mm	Pressure Range	7 to 290 psi
Material - Seal	FKM Fluoroelastomer	Thread 1	1/4 BSPT
Thread 1 Type	BSPT	Trade Name	Legris
Inch/Metric	Metric-BSPT	Outer Diameter 1	12 mm
Configuration Sub-Type	Male Connector	Series	Legris LF3800
