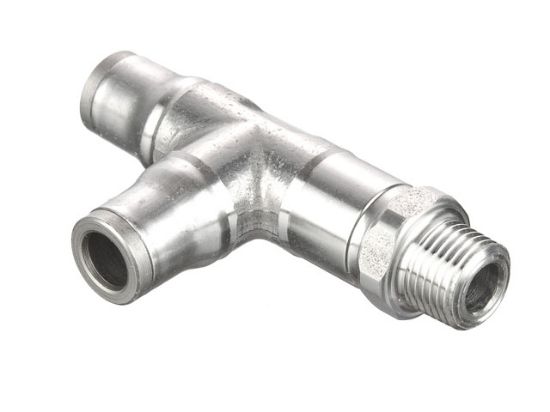

Parker 3803 10 17 - Legris LF3800 Series 3803 - Metric-BSPT

Metric-BSPT Male Run Tee Swivel - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3803 10 17

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Outer Diameter 1	10 mm
Thread 1	3/8 BSPT	Trade Name	Legris
Pressure Range	7 to 290 psi	Inch/Metric	Metric-BSPT
Configuration Sub-Type	Male Run Tee Swivel	Parker Division	Fluid Systems Connector (Brass Products)
Material	Stainless Steel	Configuration Type	Tube to Male
Series	Legris LF3800	Thread 1 Type	BSPT
Parker Group	Fluid Connector	Operating Temperature	-4˚ to +302˚F
Outer Diameter 1 Inch/mm	mm	Outer Diameter 1	10 mm
Thread 1	3/8 BSPT	Material - Seal	FKM Fluoroelastomer

Product resources

Legris Push-in Fittings (PDF)
