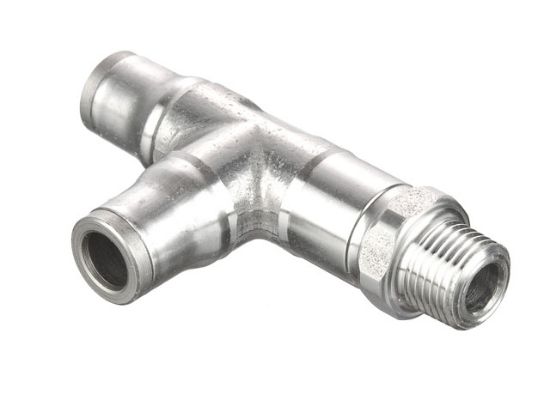

Parker 3803 04 11 - Legris LF3800 Series 3803 - Metric-Inch

Metric-Inch Male Run Tee Swivel - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3803 04 11

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Outer Diameter 1	4 mm	Thread 1	1/8 NPT
UOM	EA	Outer Diameter 1	4 mm
Operating Temperature	-4˚ to +302˚F	Inch/Metric	Metric-Inch
Material - Seal	FKM Fluoroelastomer	Thread 1 Type	NPT
Trade Name	Legris	Configuration Sub-Type	Male Run Tee Swivel
Pressure Range	7 to 290 psi	Material	Stainless Steel
Configuration Type	Tube to Male	Thread 1	1/8 NPT
Parker Group	Fluid Connector	Outer Diameter 1 Inch/mm	mm
Parker Division	Fluid Systems Connector (Brass Products)	Series	Legris LF3800

Product resources

Legris Push-in Fittings (PDF)
