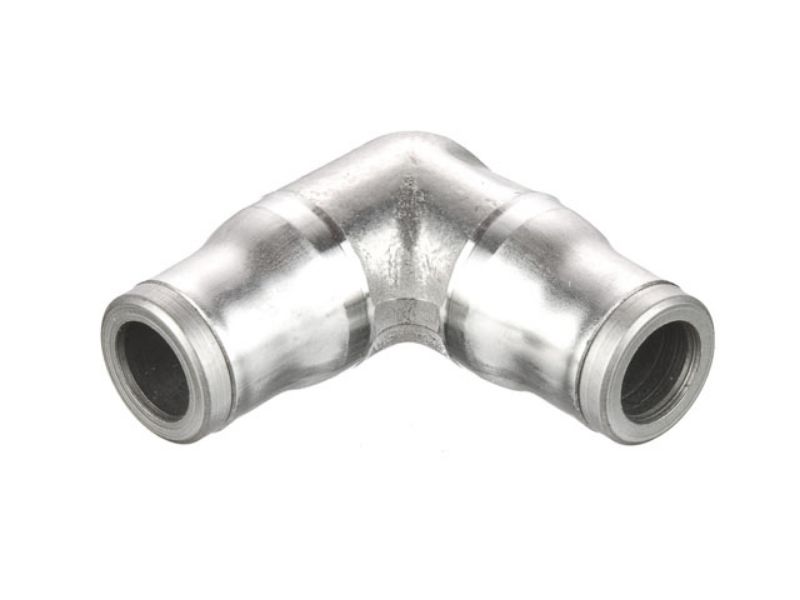

Parker 3802 55 00 - Legris LF3800 Series 3802 - Inch

Inch Union Elbow - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3802 55 00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Outer Diameter 1	3/16 Inch	UOM	EA
Operating Temperature	-4˚ to +302˚F	Series	Legris LF3800
Parker Group	Fluid Connector	Material - Seal	FKM Fluoroelastomer
Inch/Metric	Inch	Outer Diameter 1 Inch/mm	Inch
Configuration Type	Tube to Tube	Outer Diameter 1	3/16 Inch
Trade Name	Legris	Configuration Sub-Type	Union Elbow
Pressure Range	7 to 290 psi	Parker Division	Fluid Systems Connector (Brass Products)
Material	Stainless Steel
