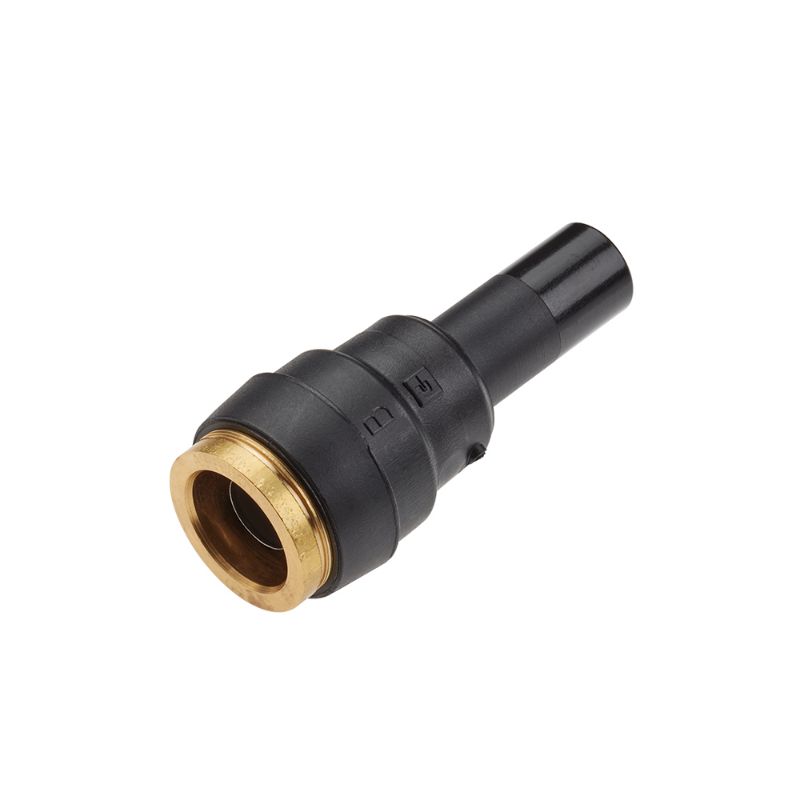

Parker 37PTCSP-4-6 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Name: Parker 37PTCSP-4-6 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR
SKU: 37PTCSP-4-6
Price: 6.63 USD
Availability: InStock

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

AFP Availability:

4 In Stock

Summerville, SC

Partner Available:

10 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 37PTCSP-4-6

$6.63/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Connection Type	NPTF	O-Ring Material	Buna N
Maximum Operating Temperature	230 °F	Collet Material	Brass
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3	Tube Material	J844 Type A & B Nylon Tubing
Maximum Operating Pressure	250 psi	Body Material	Composite
Application	Air Brakes	Minimum Operating Temperature	-50 °F
Connection 1 Size	1/4"	Connection 2 Size	3/8"
Connection 1 Type	Push-to-Connect	Thread Sealant Material	n/a
Body Material	Composite	Connection 2 Type	Plug-in Stem
Configuration	Tube to Plug-In Stem	Product Style	Plug-In Adapter
