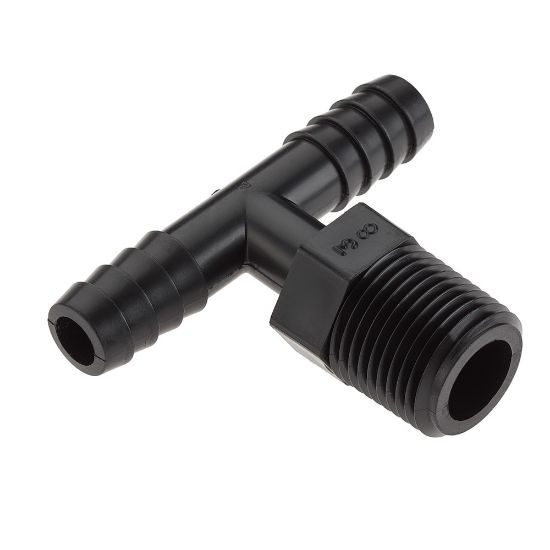

Parker 372HB-4-4PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 372HB-4-4PP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Specifications Met	FDA
For Fluid Type	Water	Application	Beverage Dispensing
Maximum Operating Pressure	8.5 bar	Maximum Operating Temperature	104 °C
Minimum Operating Temperature	-12 °C	Shape	Branch Tee
Connection 2 Size	1/4	Division	Fluid System Connectors Division
Connection 3 Size	1/4	Vacuum Pressure Rating	-29
Configuration	Tube to Pipe	Body Material	Polypropylene
Media	Water	Connection 1 Size	1/4
Compatible Tube	Vinyl	Connection 2 Type	Barbed
Color	Black	Connection 1 Type	Barbed
Brand	Parker	Connection 3 Type	Male NPT
Technology	Fluid & Gas Handling	Shape	Branch Tee
Connection 2 Type	Male Pipe	Configuration	Barb to Pipe
Connection 1 Style	Barb	Connection 1 Hose I.D. (inch)	1/4" (I.D.)
Connection 2 Hose I.D. (inch)	n/a	Connection 2 Thread Size	1/4"
Body Material	Polypropylene, Black	Color	Black
Connection 3 Type	Male NPT	Connection 2 Size	1/4"
Connection 1 Size	1/4"	Connection 3 Size	1/4"
Connection 1 Type	Barbed
