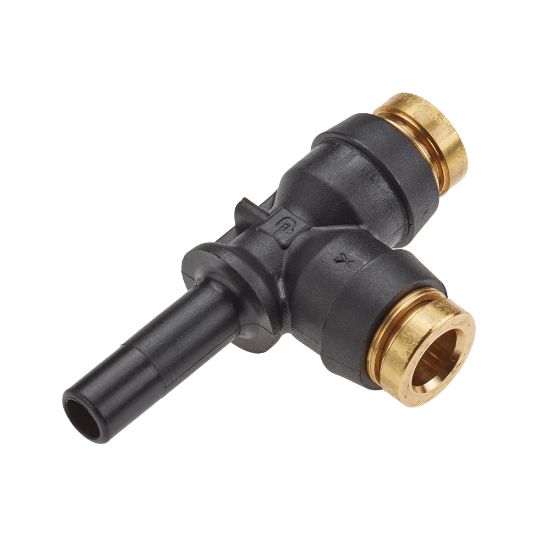

Parker 371PTCSP-4-6 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 371PTCSP-4-6

$16.43/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Composite
Application	Air Brakes	Minimum Operating Temperature	-50 °F
Collet Material	Brass	Maximum Operating Temperature	200 °F
O-Ring Material	Buna N	Connection Type	NPTF
Division	Fluid System Connectors Division	Tube Material	J844 Type A & B Nylon Tubing
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3	Maximum Operating Pressure	250 psi
Connection 1 Size	1/4"	Connection 2 Size	3/8"
Connection 1 Type	Push-to-Connect	Connection 3 Size	1/4"
Connection 3 Type	Push-to-Connect	Thread Sealant Material	n/a
Body Material	Composite	Connection 2 Type	Plug-in Stem
Configuration	Tube to Plug-In Stem	Shape	Run Tee - Plug-in
