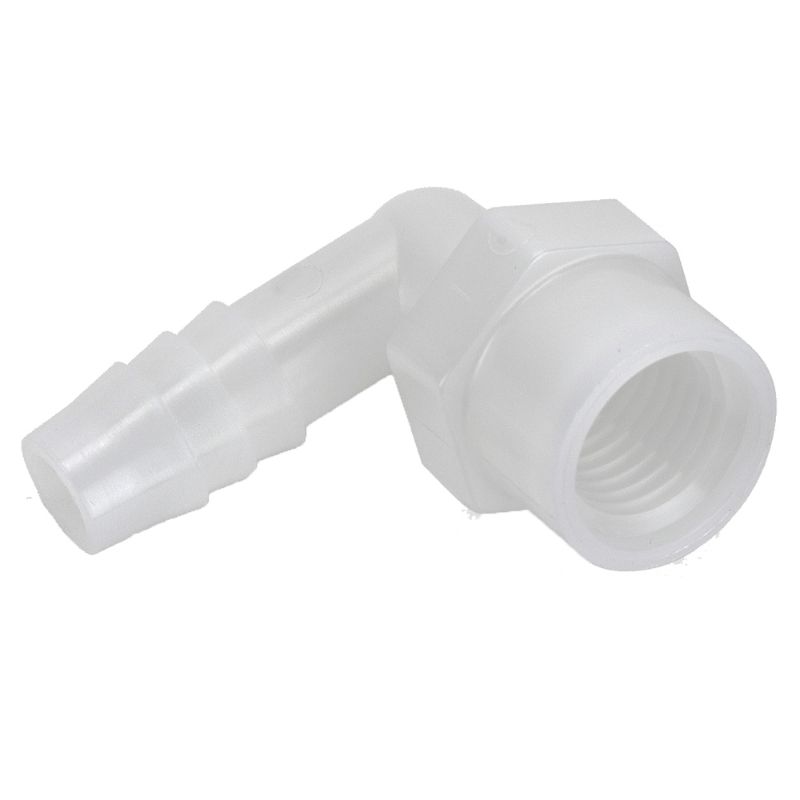

Parker 370HB-6-4N - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 370HB-6-4N

$2.49

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Minimum Operating Temperature	-40 °F	Specifications Met	FDA
For Fluid Type	Water	Application	Food Processing
Maximum Operating Temperature	93 °C	Maximum Operating Pressure	125 psi
Dimensional Weight	0.5755 lb	Connection 1 Type	Barbed
Brand	Parker	Body Material	Nylon
Color	White	Technology	Fluid & Gas Handling
Connection 2 Size	1/4	Connection 3 Size	N/A
Connection 1 Size	3/8	Division	Fluid System Connectors Division
Shape	90° Elbow	Media	Water
Configuration	Tube to Pipe	Vacuum Pressure Rating	-29
Connection 3 Type	N/A	Compatible Tube	Vinyl
Connection 2 Type	Female NPT	Shape	Elbow 90°
Connection 2 Type	Female Pipe	Connection 1 Style	Barb
Connection 1 Hose I.D. (inch)	3/8" (I.D.)	Connection 2 Hose I.D. (inch)	n/a
Connection 2 Thread Size	1/4"	Configuration	Barb to Female Pipe
Body Material	Nylon,White	Connection 1 Size	3/8"
Connection 3 Size	N/A	Connection 1 Type	Barbed
Connection 3 Type	N/A	Color	White
Connection 2 Size	1/4"

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
