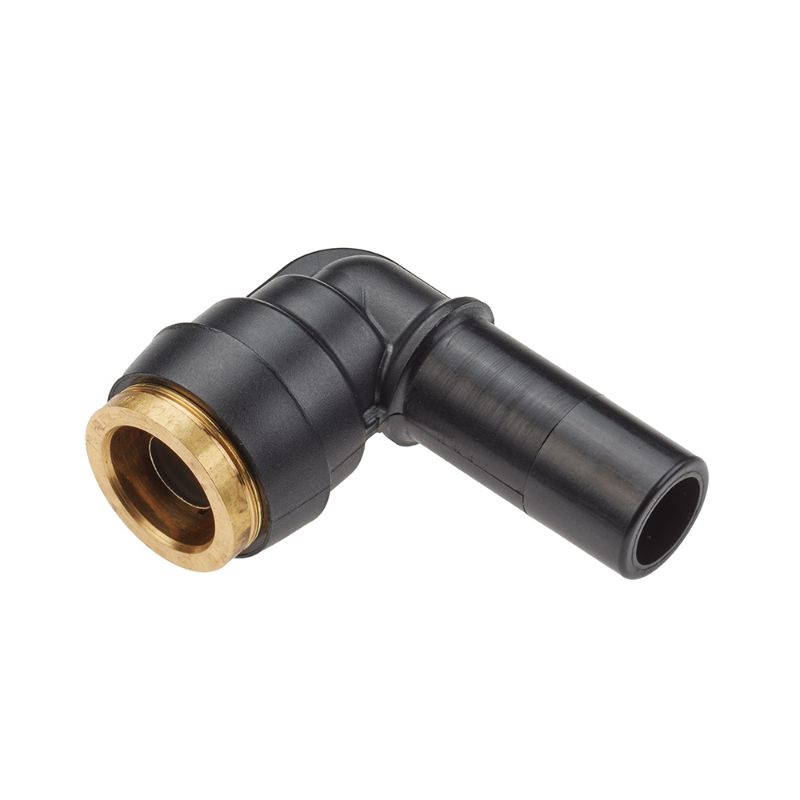

Parker 369PTCSP-4-4 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Name: Parker 369PTCSP-4-4 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR
SKU: 369PTCSP-4-4
Price: 8.54 USD
Availability: LimitedAvailability

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

Availability:

1 Limited Stock

Mooresville, NC

Partner Available:

47 In Stock

Brand Parker

Part No. 369PTCSP-4-4

$8.54

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Connection Type	NPTF	Maximum Operating Pressure	17 bar
Maximum Operating Temperature	93 °C	Dimensional Weight	0.2759 lb
Minimum Operating Temperature	-50 °F	O-Ring Material	Buna N
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3	Body Material	Composite
Application	Air Brakes	Collet Material	Brass
Tube Material	Stainless Steel	Connection 1 Size	1/4"
Connection 2 Size	1/4"	Connection 1 Type	Push-to-Connect
Thread Sealant Material	n/a	Body Material	Composite
Connection 2 Type	Plug-in Stem	Shape	Elbow 90° - Plug-in
Configuration	Tube to Plug-In Stem
