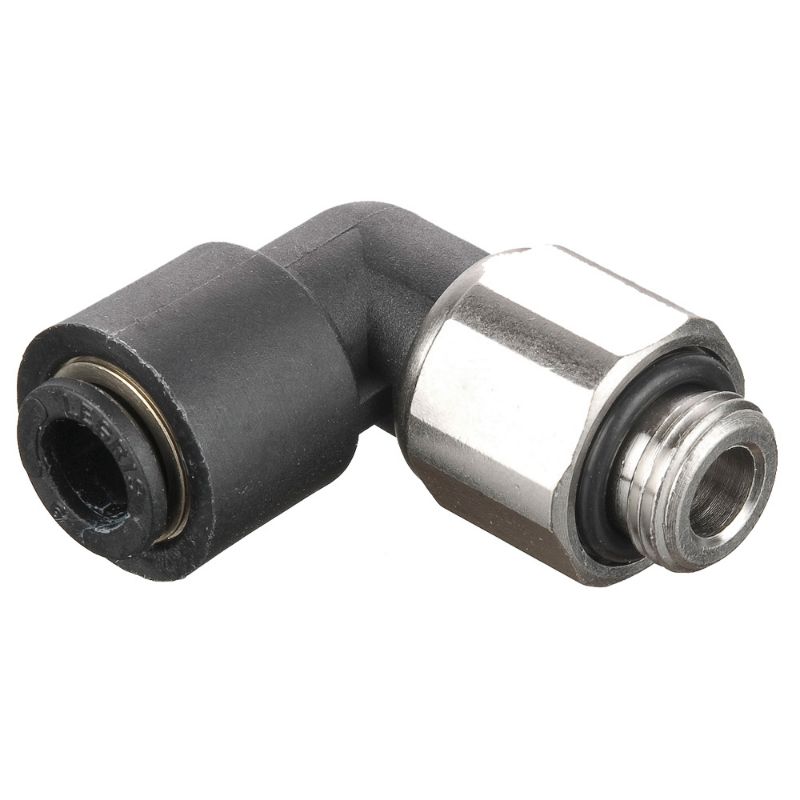

Parker 369PLPO-6M-2G - Oscillating Elbows

Parker's push-to-connect oscillating elbows are designed for optimum reliability and durability preventing tube wear due to excessive flexing of the tubing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 369PLPO-6M-2G

$27.45

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Seal Material	Nitrile	Gripping Ring Material	Stainless Steel
Connection 1 Size	Push-to-connect	Application	Air, Cutting Fluids, Inert Gases
Tube Material	Nylon Semi-Rigid, Polyurethane 95 Durometer, Nylon, Fluoropolymer	Specifications Met	ISO 14743, DI: 97/23/EC, DI: 2002/95/EC, DI: 1907/2006
Product Style	Tube to Pipe	Fitting Material	Glass Reinforced Nylon 6.6
Maximum Operating Pressure	290	Maximum Operating Temperature	175
Minimum Operating Temperature	-4	Body Material	Glass Reinforced Nylon 6.6
Shape	Elbow 90°	Connection 2 Thread Size	1/8"
Connection 1 Tube Outside Diameter	6 mm (O.D.)	Connection 2 Type	BSPP

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
