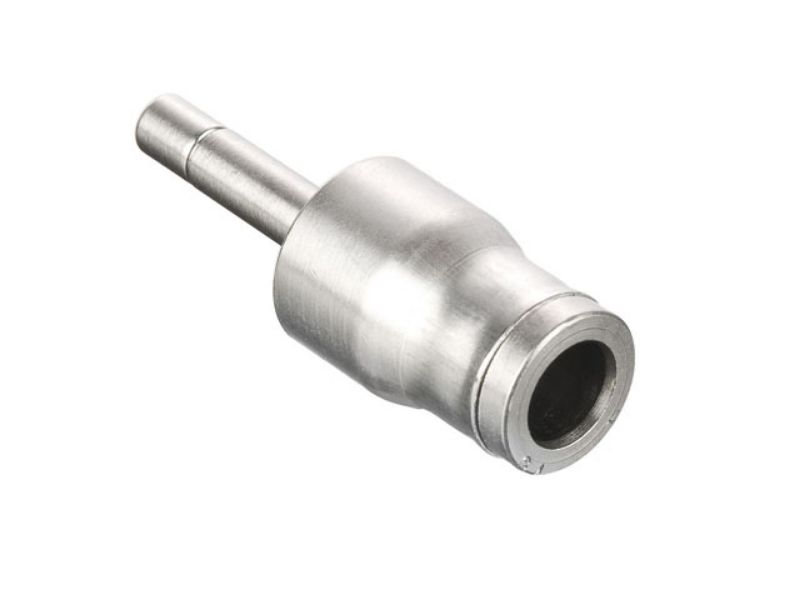

Parker 3667 06 56 - Legris LF3600 Series 3667 - Metric-Inch

Metric-Inch Plug-in Adapter - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3667 06 56

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Outer Diameter 2	1/4 Inch
Outer Diameter 1	6 mm	Parker Group	Fluid Connector
Parker Division	Fluid Systems Connector (Brass Products)	Outer Diameter 2 Inch/mm	Inch
Configuration Type	Tube to Tube	Operating Temperature	-4˚ to +302˚F
Outer Diameter 1 Inch/mm	mm	Pressure Range	7 to 290 psi
Material - Seal	FKM Fluoroelastomer	Outer Diameter 2	1/4 Inch
Trade Name	Legris	Outer Diameter 1	6 mm
Series	Legris LF3600	Material	Nickel Plated Brass
Inch/Metric	Metric-Inch	Configuration Sub-Type	Plug-in Adapter

Product resources

Legris Push-in Fittings (PDF)
