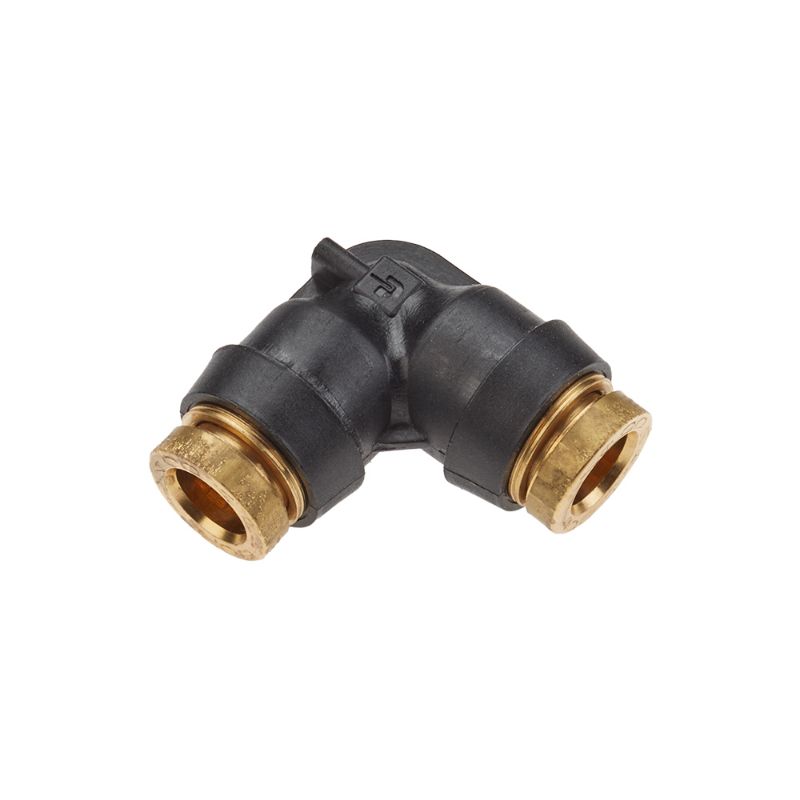

Parker 365PTC-6 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Name: Parker 365PTC-6 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR
SKU: 365PTC-6
Price: 23.17 USD
Availability: InStock

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

AFP Availability:

10 In Stock

Grovetown, GA

Partner Available:

132 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 365PTC-6

$23.17/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	NPTF
Division	Fluid System Connectors Division	Maximum Operating Temperature	110 °C
O-Ring Material	Buna N	Maximum Operating Pressure	250 psi
Tube Material	Stainless Steel	Application	Air Brakes
Minimum Operating Temperature	-40 °F	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3
Collet Material	Brass	Body Material	Composite
Shape	Elbow 90°	Connection 1 Size	3/8"
Connection 2 Size	3/8"	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Connection 2 Type	Push-to-Connect
Thread Sealant Material	n/a	Body Material	Composite
