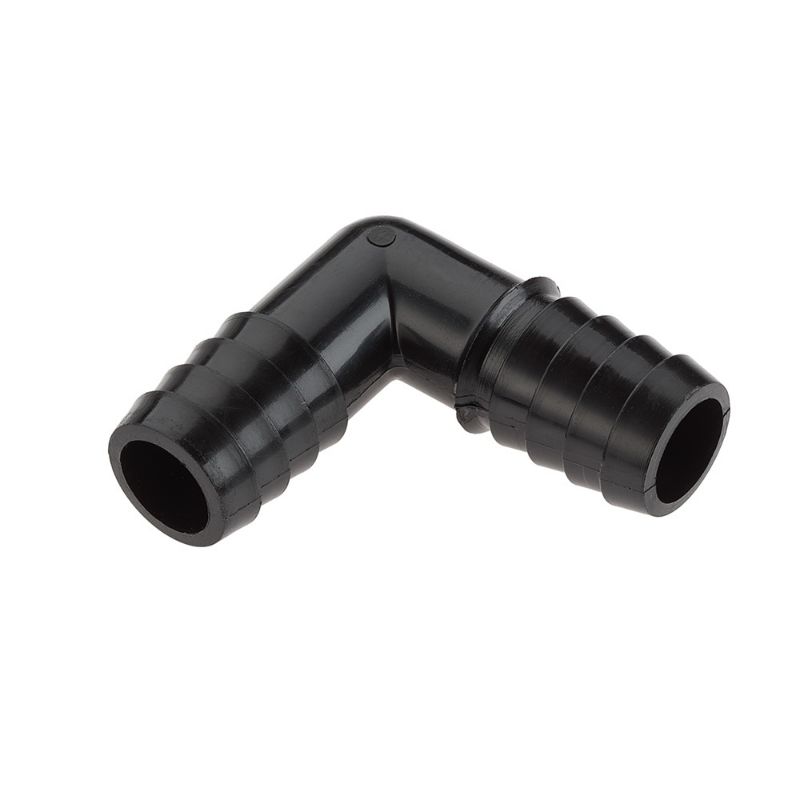

Parker 365HB-8PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 365HB-8PP

$1.08/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Type	N/A
Brand	Parker	Maximum Operating Pressure	125 psi
Color	Black	Compatible Tube	Vinyl
Connection 2 Size	1/2	Vacuum Pressure Rating	-29
Configuration	Tube to Tube	Specifications Met	FDA, NSF-51
Application	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing	Connection 3 Size	N/A
Connection 1 Type	Barbed	Tube Material	Vinyl, Polyurethane, Rubber Hose
Connection 2 Type	Barbed	Connection 1 Size	1/2
Body Material	Polypropylene	Division	Fluid System Connectors Division
Shape	90° Elbow	Minimum Operating Temperature	-12 °C
Division	Fluid System Connectors Division	Technology	Fluid & Gas Handling
Media	Water, Air, Other Compatible Fluids	Maximum Operating Temperature	104 °C
Shape	Elbow 90°	Configuration	Barb to Barb
Connection 2 Type	Barb	Connection 1 Style	Barb
Connection 1 Hose I.D. (inch)	1/2" (I.D.)	Connection 2 Hose I.D. (inch)	1/2" (I.D.)
Body Material	Polypropylene, Black	Connection 1 Type	Barbed
Connection 3 Size	N/A	Connection 3 Type	N/A
Color	Black	Connection 1 Size	1/2"
Connection 2 Size	1/2"
