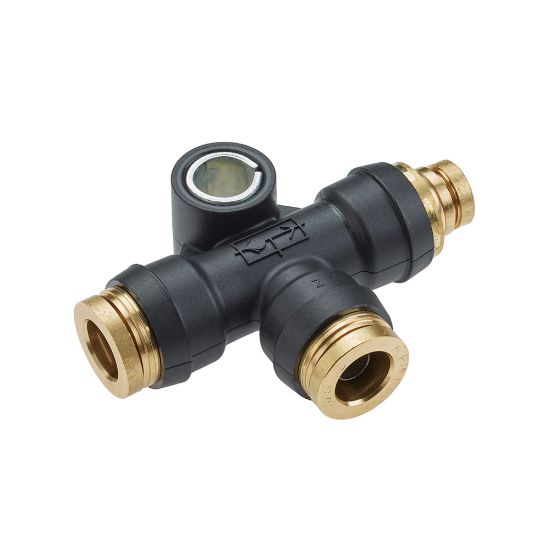

Parker 364PTCSV-6-6-4 - Air Brake DOT Single & Double Check Valves

Parker's DOT Check Valves were designed to deliever increased flow capacity and reliable sealing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 364PTCSV-6-6-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Fluid System Connectors Division
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
Shape	Tee	Connection 1 Type	Push-to-Connect
Connection 2 Type	Push-to-Connect	Media	Compressed Air
O-Ring Material	Buna N	Body Material	Composite
Tube Material	J844 Type A & B Nylon Tubing	Collet Material	Brass
Product Style	Tube to Tube	Application	Cab Controls
Specifications Met	DOT FMVSS 571.106, SAE J1409, & SAE J1410	Industry	Automotive, Trucks, and Buses
Valve Type	Double Check Valve	Product Type	Check Valves
Connection 1 Size	3/8	Connection 2 Size	1/4
Connection 3 Size	3/8	Connection 3 Type	Push-to-Connect
Thread Sealant Material	N/A	Shape	Tee
Connection 1 Type	Push-to-Connect	Product Style	Tube to Tube
Connection 2 Type	Push-to-Connect	Connection 3 Type	Push-to-Connect
Body Material	Composite	Connection 1 Size	3/8 inch
Connection 2 Size	1/4 inch	Connection 3 Size	3/8 inch
Valve Type	Double Check Valve
