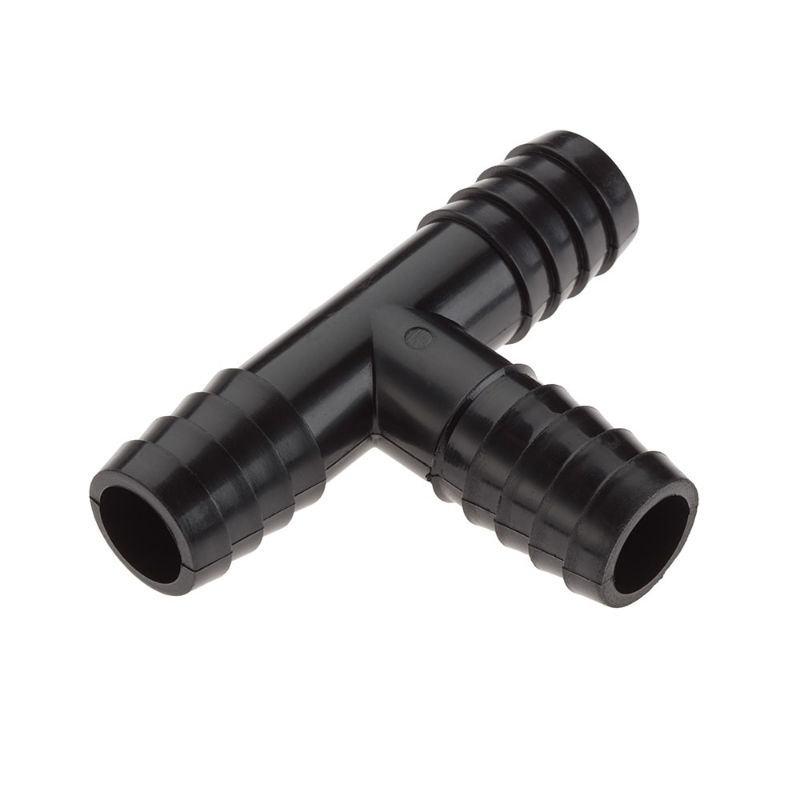

Parker 364HB-8PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 364HB-8PP

$1.13

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Media	Water, Air, Other Compatible Fluids	Specifications Met	FDA, NSF-51
Maximum Operating Temperature	220 °F	Maximum Operating Pressure	8.5 bar
Minimum Operating Temperature	-12 °C	Application	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing
Tube Material	Vinyl, Polyurethane, Rubber Hose	Brand	Parker
Connection 3 Type	Barbed	Color	Black
Connection 2 Size	1/2	Shape	Tee
Body Material	Polypropylene	Vacuum Pressure Rating	-29
Connection 2 Type	Barbed	Compatible Tube	Vinyl
Configuration	Tube to Tube	Division	Fluid System Connectors Division
Technology	Fluid & Gas Handling	Connection 3 Size	1/2
Connection 1 Type	Barbed	Connection 1 Size	1/2
Shape	Tee	Configuration	Barb to Barb
Connection 2 Type	Barb	Connection 1 Style	Barb
Connection 1 Hose I.D. (inch)	1/2" (I.D.)	Connection 2 Hose I.D. (inch)	1/2" (I.D.)
Body Material	Polypropylene, Black	Connection 3 Type	Barbed
Color	Black	Connection 2 Size	1/2"
Connection 1 Size	1/2"	Connection 3 Size	1/2"
Connection 1 Type	Barbed

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
