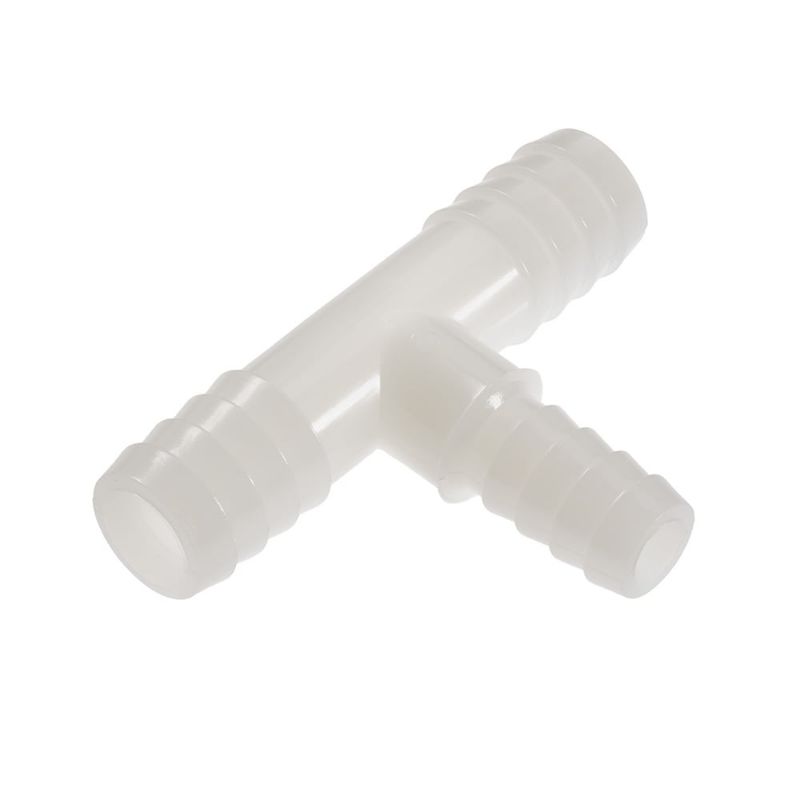

Parker 364HB-6-4N - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 364HB-6-4N

$1.24/each

Products specifications

Attribute name	Attribute value
UOM	EA	Color	White
Maximum Operating Pressure	125 psi	Compatible Tube	Vinyl
Brand	Parker	Connection 3 Type	Barbed
Vacuum Pressure Rating	-29	Connection 3 Size	1/4
Shape	Tee	Application	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing
Connection 1 Type	Barbed	Tube Material	Vinyl, Polyurethane, Rubber Hose
Specifications Met	FDA, NSF-51	Connection 1 Size	3/8
Connection 2 Type	Barbed	Minimum Operating Temperature	-40 °C
Division	Fluid System Connectors Division	Body Material	Nylon
Division	Fluid System Connectors Division	Connection 2 Size	3/8
Configuration	Tube to Tube	Dimensional Weight	0.5755 lb
Technology	Fluid & Gas Handling	Media	Water, Air, Other Compatible Fluids
Maximum Operating Temperature	200 °F	Shape	Tee
Configuration	Barb to Barb	Connection 2 Type	Barb
Connection 1 Style	Barb	Connection 1 Hose I.D. (inch)	3/8" (I.D.)
Connection 2 Hose I.D. (inch)	1/4" (I.D.)	Body Material	Nylon,White
Connection 1 Type	Barbed	Connection 2 Size	3/8"
Connection 1 Size	3/8"	Connection 3 Type	Barbed
Color	White	Connection 3 Size	1/4"
