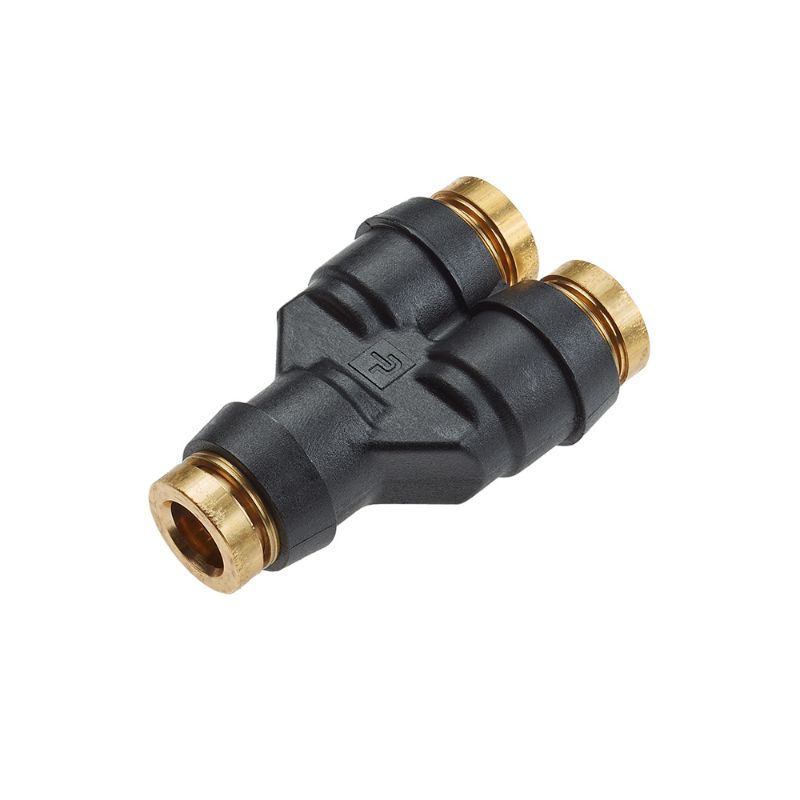

Parker 362PTC-6 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

AFP Availability:	Quote Required
Partner Available:	125 In Stock

Brand Parker

Part No. 362PTC-6

$33.87/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Composite
Minimum Operating Temperature	-50 °F	Division	Fluid System Connectors Division
Connection Type	NPTF	O-Ring Material	Buna N
Maximum Operating Temperature	230 °F	Collet Material	Brass
Maximum Operating Pressure	250 psi	Dimensional Weight	0.2759 lb
Application	Air Brakes	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3
Tube Material	Stainless Steel	Connection 1 Size	3/8"
Connection 2 Size	3/8"	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Connection 2 Type	Push-to-Connect
Connection 3 Size	3/8"	Connection 3 Type	Push-to-Connect
Thread Sealant Material	n/a	Body Material	Composite
Shape	Wye
