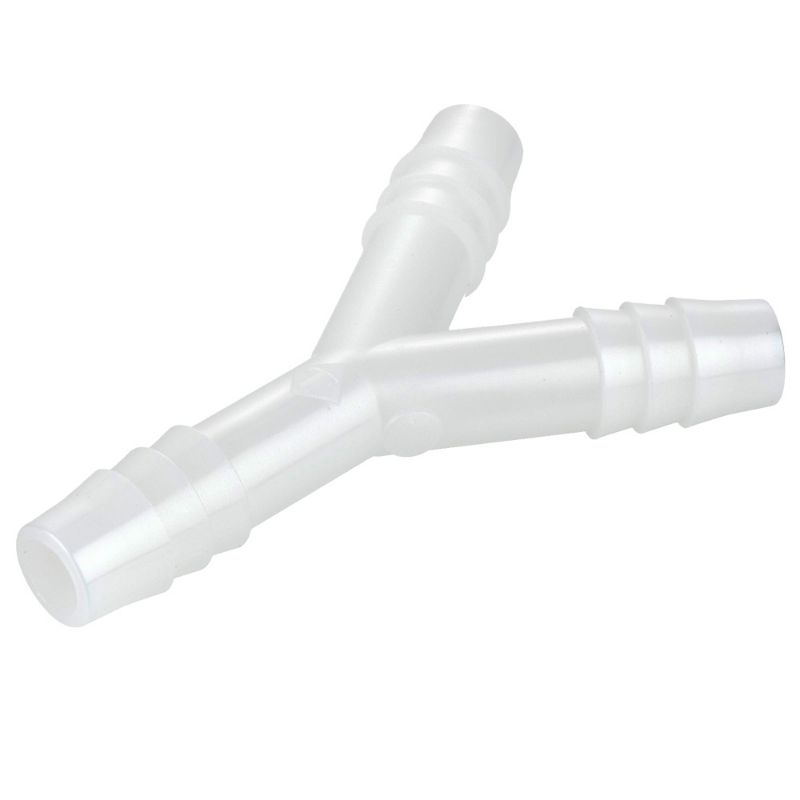

Parker 362HB-8N - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

AFP Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. 362HB-8N

$2.72/each

Products specifications

Attribute name	Attribute value
UOM	EA	Vacuum Pressure Rating	-29
Connection 2 Size	1/4	Configuration	Tube to Tube
Division	Fluid System Connectors Division	Maximum Operating Temperature	93 °C
Connection 1 Type	Barbed	Tube Material	Vinyl, Polyurethane, Rubber Hose
Maximum Operating Pressure	125 psi	Color	White
Compatible Tube	Rubber Hose	Brand	Parker
Connection 3 Type	Barbed	Shape	Wye
Minimum Operating Temperature	-40 °C	Division	Fluid System Connectors Division
Connection 3 Size	1/4	Application	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing
Specifications Met	FDA, NSF-51	Technology	Fluid & Gas Handling
Media	Water, Air, Other Compatible Fluids	Connection 1 Size	1/4
Body Material	Nylon	Connection 2 Type	Barbed
Configuration	Barb to Barb	Connection 2 Type	Barb
Connection 1 Style	Barb	Connection 1 Hose I.D. (inch)	1/2" (I.D.)
Connection 2 Hose I.D. (inch)	1/2" (I.D.)	Body Material	Nylon,White
Shape	Union Wye	Connection 1 Size	1/2"
Connection 1 Type	Barbed	Connection 2 Size	1/2"
Connection 3 Size	1/2"	Connection 3 Type	Barbed
Color	White
