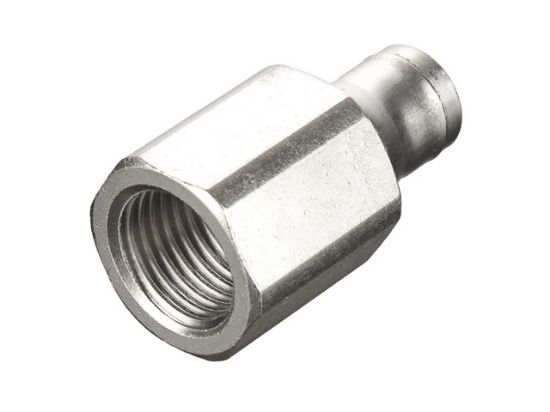

Parker 3614 04 19 - Legris LF3600 Series 3614 - Metric-BSPP/Metric

Metric-BSPP/Metric Female Connector - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3614 04 19

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Thread 1	M5x0.8 Metric
Outer Diameter 1	4 mm	Parker Group	Fluid Connector
Parker Division	Fluid Systems Connector (Brass Products)	Thread 1 Type	Metric
Configuration Type	Tube to Female	Operating Temperature	-4˚ to +302˚F
Inch/Metric	Metric-BSPP/Metric	Outer Diameter 1 Inch/mm	mm
Pressure Range	7 to 290 psi	Material - Seal	FKM Fluoroelastomer
Trade Name	Legris	Thread 1	M5x0.8 Metric
Outer Diameter 1	4 mm	Configuration Sub-Type	Female Connector
Series	Legris LF3600	Material	Nickel Plated Brass

Product resources

Legris Push-in Fittings (PDF)
