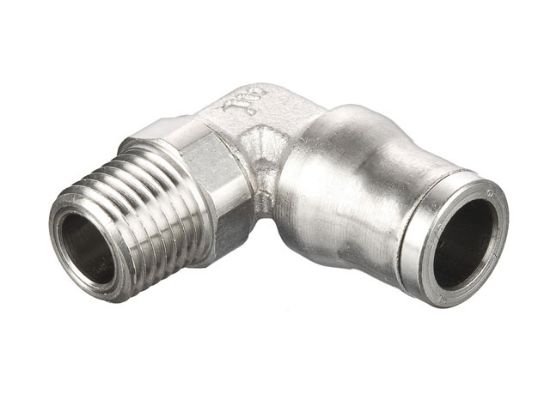

Parker 3609 12 21 - Legris LF3600 Series 3609 - Metric-BSPT

Metric-BSPT Male Elbow 90° - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3609 12 21

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Outer Diameter 1	12 mm
Thread 1	1/2 BSPT	Parker Group	Fluid Connector
Parker Division	Fluid Systems Connector (Brass Products)	Configuration Type	Tube to Male
Configuration Sub-Type	Male Elbow 90°	Operating Temperature	-4˚ to +302˚F
Outer Diameter 1 Inch/mm	mm	Pressure Range	7 to 290 psi
Material - Seal	FKM Fluoroelastomer	Thread 1 Type	BSPT
Trade Name	Legris	Inch/Metric	Metric-BSPT
Outer Diameter 1	12 mm	Thread 1	1/2 BSPT
Series	Legris LF3600	Material	Nickel Plated Brass

Product resources

Legris Push-in Fittings (PDF)
