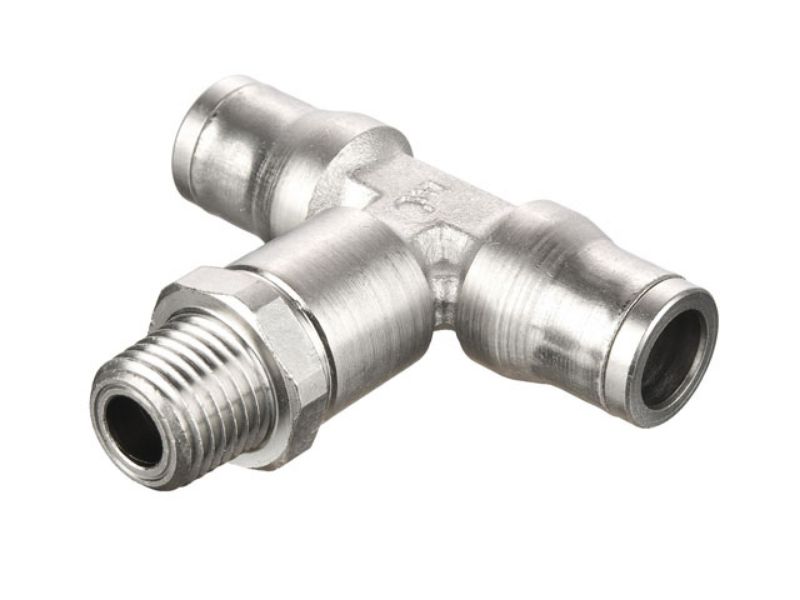

Parker 3608 04 10 - Legris LF3600 Series 3608 - Metric-BSPT

Metric-BSPT Male Branch Tee Swivel - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3608 04 10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Thread 1	1/8 BSPT
Outer Diameter 1	4 mm	Parker Group	Fluid Connector
Parker Division	Fluid Systems Connector (Brass Products)	Configuration Type	Tube to Male
Operating Temperature	-4˚ to +302˚F	Configuration Sub-Type	Male Branch Tee Swivel
Outer Diameter 1 Inch/mm	mm	Pressure Range	7 to 290 psi
Material - Seal	FKM Fluoroelastomer	Thread 1	1/8 BSPT
Thread 1 Type	BSPT	Trade Name	Legris
Inch/Metric	Metric-BSPT	Outer Diameter 1	4 mm
Series	Legris LF3600	Material	Nickel Plated Brass

Product resources

Legris Push-in Fittings (PDF)
