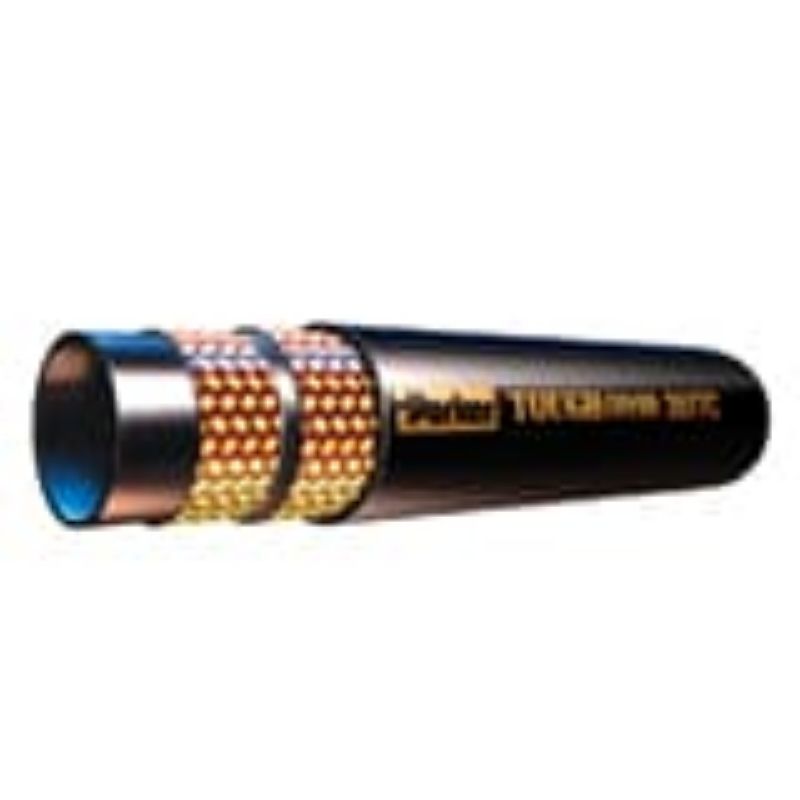

Parker 351TC-12 - OBSOLETE: Hydraulic Braided Constant Working Pressure Hose 4000 PSI – 351 Hose

This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 351TC-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	212 °F
Minimum Bend Radius	4-3/4 inch	Inside Diameter	19 mm
Compatible Fitting	43 Series	Hose Inner Tube Material	Synthetic Rubber
Hose Reinforcement Material	2 Braids of Steel Wire	Nominal Hose Inside Diameter	19 mm
Application	Petroleum Base Hydraulic Fluids	Media	Lubricants
Specifications Met	SAE 100R19	Weight	0.86 kg/m
Cover Material	MSHA Approved	Outside Diameter	1.090 inch
Maximum Operating Pressure	28 MPa	Hose I.D. (size)	-12
Hose Cover Type	ToughCover
