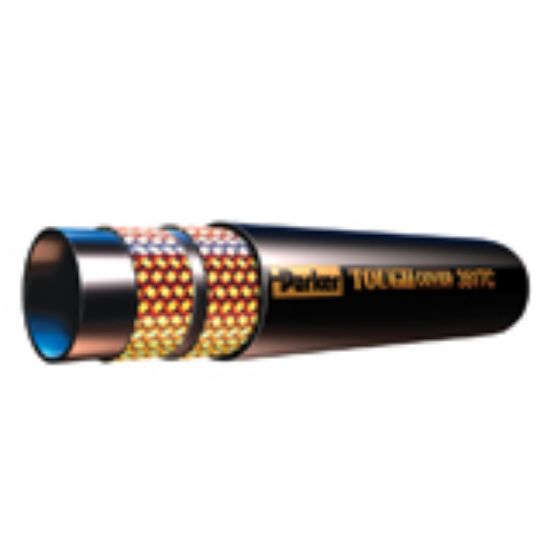

Parker 351TC-10 - OBSOLETE: Hydraulic Braided Constant Working Pressure Hose 4000 PSI – 351 Hose

This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 351TC-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	100 °C	Minimum Bend Radius	100 mm
Weight	0.66 kg/m	Outside Diameter	0.930 inch
Compatible Fitting	43 Series	Hose Inner Tube Material	Synthetic Rubber
Hose Reinforcement Material	2 Braids of Steel Wire	Nominal Hose Inside Diameter	16 mm
Application	Lubricating Oils	Maximum Operating Pressure	4000 psi
Inside Diameter	16 mm	Media	Lubricants
Cover Material	MSHA Approved	Specifications Met	SAE J517 (constant working pressure)
Hose I.D. (size)	-10	Hose Cover Type	ToughCover
