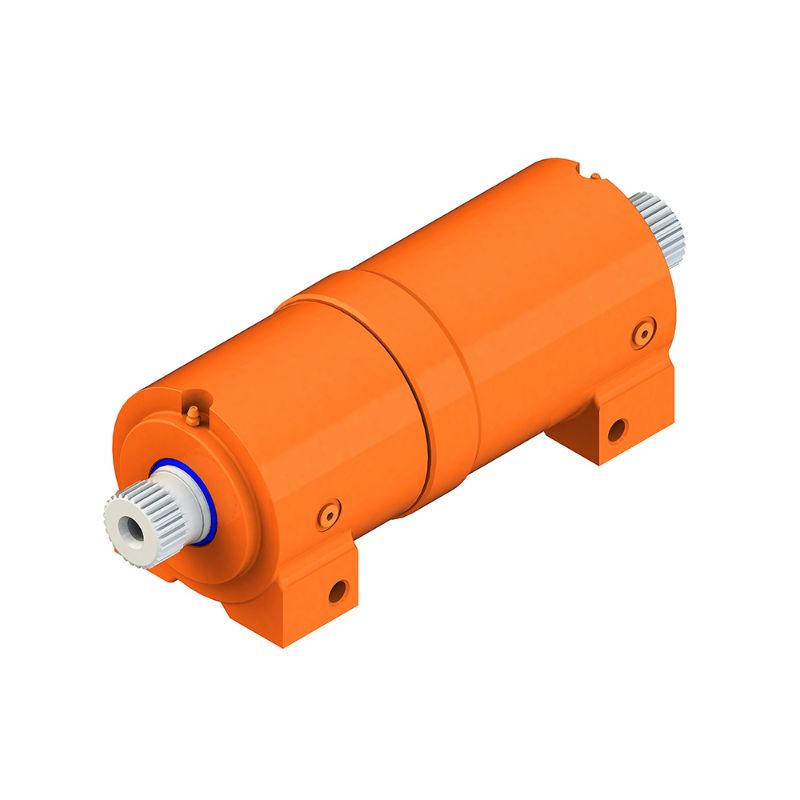

Parker 33288 - Helical Hydraulic Rotary Actuator - Helac T-Series

The Helac T Series Helical Hydraulic Rotary Actuator is ideal for applications where torque generation and higher cycle rates are the primary requirements, featuring splined output shafts with 200-220 degrees of rotation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 33288

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	3000 psi	Division	Cylinder Division
Technology	Hydraulics	Division	Cylinder Division
Brand	Helac	Industry	Hydraulic
Product Type	Helical	Width	Varies See Catalog for Dimensions
Height	Varies per Model. See Catalog for Specifications.	Length	Varies per Model. See Catalog for Specifications.
Operating Pressure	3000 psi	Maximum Output Torque	3000 psi
Product Series	T Series	Application	Agriculture
Weight	72 lb	Displacement	48.8 inch3
Drive Torque	27000 lb-inch	Torque Rating	27000 inch-lbs
Holding Torque	54200 lb-inch	Rotation Angle	220 °
Straddle Moment	40500 lb-inch	Axial Load Capacity	4500 lbs
Radial Load Capacity	4500 lb	Model Number	T30-27-E-FT-220-DS-O-H
