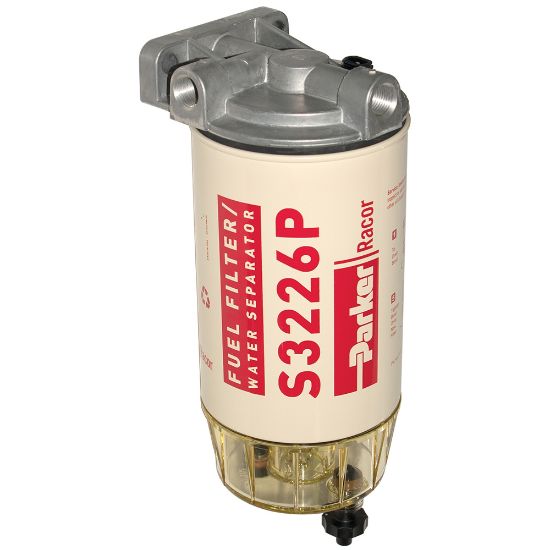

Picture of Parker 330R30 - Fuel Filter Water Separator – Racor Spin-on Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 330R30 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 330R30
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionEngine Mobile Original Equipment DivisionBrandRacor
Product TypeDiesel Spin-on FF/WSHead MaterialAluminium Alloy
For Fluid TypeDiesel and GasolineFilter Element Type30 Micron Aquabloc Spin-on
Accessories IncludedSee Product Support TabOperating Temperature-40 to 250
Maximum Fluid Temperature190.0Number of Ports1 Inlet / 1 Outlet
Maximum Operating Pressure15Depth4.4
Width4.8Height11
Weight3.2 lb / 1.5 KgCompatible ElementS3226S = "2" Micron<br/>S3226T = 10 Micron<br/>S3226P = 30 Micron
Clean Pressure Drop0.39LocationNorth America and EMEA regions
Micron Rating98% @ 30 MicronMountingBracket Included
Part TypeFilter AssemblyBowl MaterialClear Engineering Plastic
Heater Power RatingNo HeaterIntegral Primer Pump IncludedNo Pump
Bowl TypeDeep Bowl, Clear Engineering PlasticProduct SeriesDiesel Spin-on 300
Flow Rate75 gph (284 lph)Port Size3/8"-18 NPTF (SAE J476)
