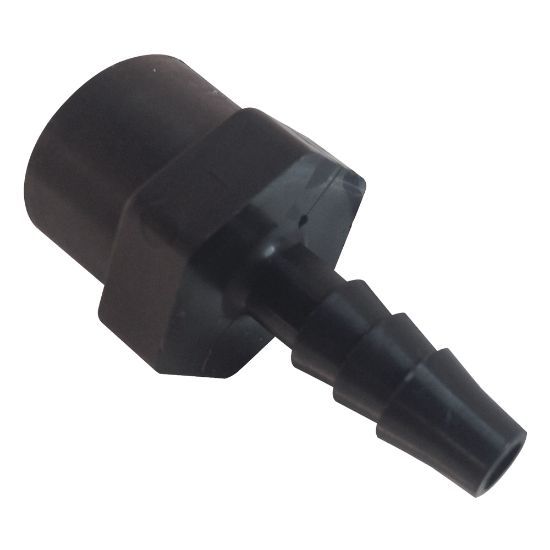

Parker 326HB-6-6PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 326HB-6-6PP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Specifications Met	FDA
Maximum Operating Temperature	220 °F	Application	Beverage Dispensing
For Fluid Type	Other Compatible Fluids	Maximum Operating Pressure	8.5 bar
Minimum Operating Temperature	-12 °C	Connection 3 Size	N/A
Connection 1 Size	3/8	Division	Fluid System Connectors Division
Body Material	Polypropylene	Media	Water
Vacuum Pressure Rating	-29	Configuration	Tube to Pipe
Connection 3 Type	N/A	Compatible Tube	Vinyl
Shape	Connector	Connection 2 Type	Female NPT
Brand	Parker	Connection 1 Type	Barbed
Color	Black	Connection 2 Size	3/8
Technology	Fluid & Gas Handling	Connection 2 Type	Female Pipe
Product Style	Connector	Connection 1 Style	Barb
Connection 1 Hose I.D. (inch)	3/8" (I.D.)	Connection 2 Hose I.D. (inch)	n/a
Connection 2 Thread Size	3/8"	Configuration	Barb to Female Pipe
Body Material	Polypropylene, Black	Color	Black
Connection 1 Size	3/8"	Connection 3 Type	N/A
Connection 2 Size	3/8"	Shape	Connector
Connection 1 Type	Barbed	Connection 3 Size	N/A
