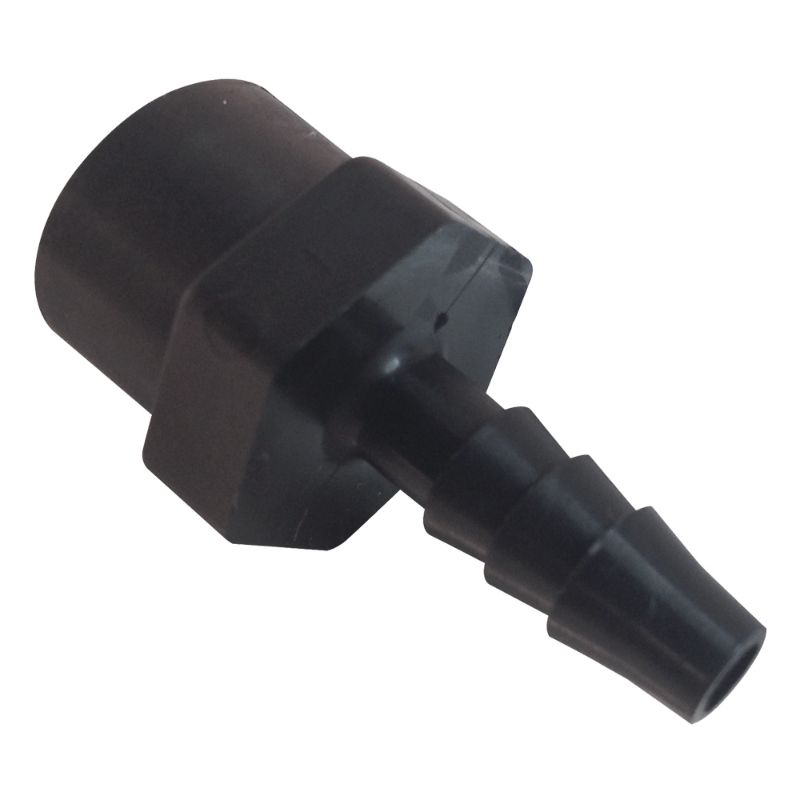

Parker 326HB-4-8PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 326HB-4-8PP

$2.93

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Specifications Met	FDA	For Fluid Type	Air
Application	Food Processing	Maximum Operating Pressure	8.5 bar
Maximum Operating Temperature	104 °C	Minimum Operating Temperature	-12 °C
Dimensional Weight	0.5755 lb	Body Material	Polypropylene
Media	Water	Vacuum Pressure Rating	-29
Connection 2 Type	Female NPT	Division	Fluid System Connectors Division
Configuration	Tube to Pipe	Connection 2 Size	1/2
Technology	Fluid & Gas Handling	Compatible Tube	Vinyl
Connection 3 Type	N/A	Connection 1 Size	1/4
Shape	Connector	Connection 3 Size	N/A
Color	Black	Connection 1 Type	Barbed
Brand	Parker	Connection 2 Type	Female Pipe
Product Style	Connector	Connection 1 Style	Barb
Connection 1 Hose I.D. (inch)	1/4" (I.D.)	Connection 2 Hose I.D. (inch)	n/a
Connection 2 Thread Size	1/2"	Configuration	Barb to Female Pipe
Body Material	Polypropylene, Black	Connection 1 Size	1/4"
Color	Black	Connection 2 Size	1/2"
Connection 3 Type	N/A	Connection 3 Size	N/A
Shape	Connector	Connection 1 Type	Barbed

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
