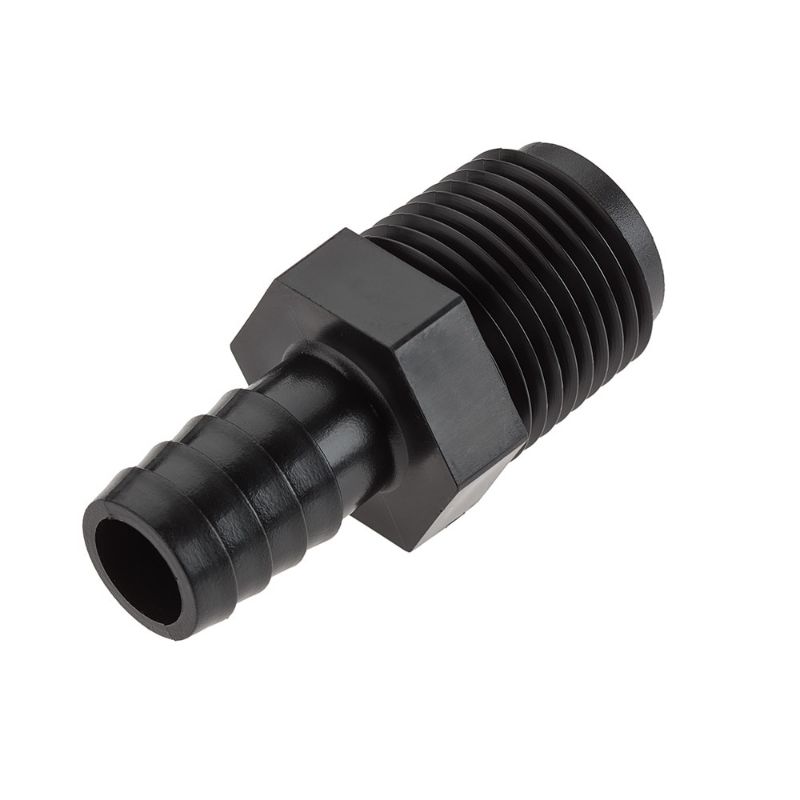

Parker 325HB-3-4PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 325HB-3-4PP

$0.54

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Specifications Met	FDA	For Fluid Type	Water
Maximum Operating Temperature	220 °F	Application	Beverage Dispensing
Maximum Operating Pressure	125 psi	Minimum Operating Temperature	-12 °C
Dimensional Weight	0.5755 lb	Connection 1 Size	3/16
Configuration	Tube to Pipe	Media	Water
Division	Fluid System Connectors Division	Shape	Connector
Connection 3 Type	N/A	Compatible Tube	Vinyl
Connection 3 Size	N/A	Connection 2 Size	1/4
Color	Black	Connection 1 Type	Barbed
Brand	Parker	Technology	Fluid & Gas Handling
Vacuum Pressure Rating	-29	Body Material	Polypropylene
Connection 2 Type	Male NPT	Connection 2 Type	Male Pipe
Configuration	Barb to Pipe	Product Style	Connector
Connection 1 Style	Barb	Connection 1 Hose I.D. (inch)	3/16" (I.D.)
Connection 2 Hose I.D. (inch)	n/a	Connection 2 Thread Size	1/4"
Body Material	Polypropylene, Black	Connection 3 Type	N/A
Connection 1 Size	3/16"	Connection 3 Size	N/A
Shape	Connector	Connection 1 Type	Barbed
Connection 2 Size	1/4"	Color	Black
