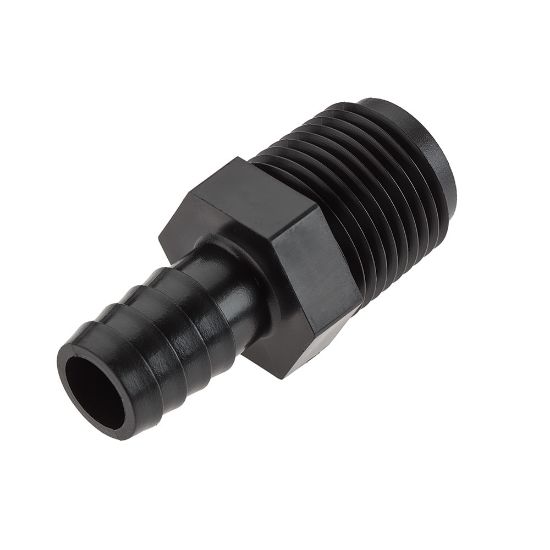

Parker 325HB-10-12PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 325HB-10-12PP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Specifications Met	FDA
Maximum Operating Temperature	220 °F	Application	Beverage Dispensing
For Fluid Type	Other Compatible Fluids	Maximum Operating Pressure	8.5 bar
Minimum Operating Temperature	10 °F	Shape	Connector
Compatible Tube	Vinyl	Connection 2 Size	3/4
Division	Fluid System Connectors Division	Connection 1 Type	Barbed
Technology	Fluid & Gas Handling	Connection 3 Type	N/A
Connection 1 Size	5/8	Connection 2 Type	Male NPT
Brand	Parker	Color	Black
Connection 3 Size	N/A	Media	Water
Configuration	Tube to Pipe	Body Material	Polypropylene
Vacuum Pressure Rating	-29	Connection 2 Type	Male Pipe
Configuration	Barb to Pipe	Product Style	Connector
Connection 1 Style	Barb	Connection 1 Hose I.D. (inch)	5/8" (I.D.)
Connection 2 Hose I.D. (inch)	n/a	Connection 2 Thread Size	3/4"
Body Material	Polypropylene, Black	Connection 3 Type	N/A
Connection 1 Type	Barbed	Shape	Connector
Connection 3 Size	N/A	Connection 1 Size	5/8"
Connection 2 Size	3/4"	Color	Black
