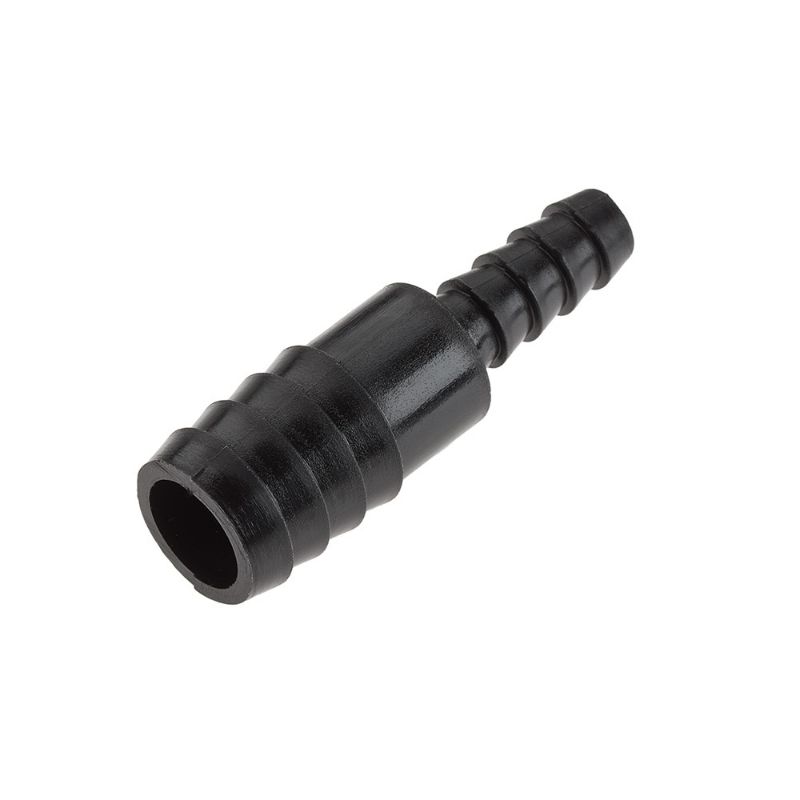

Parker 322HB-4PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 322HB-4PP

$0.52

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Media	Water, Air, Other Compatible Fluids	Specifications Met	FDA, NSF-51
Maximum Operating Temperature	220 °F	Maximum Operating Pressure	125 psi
Minimum Operating Temperature	-12 °C	Application	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing
Tube Material	Vinyl, Polyurethane, Rubber Hose	Connection 3 Type	N/A
Shape	Connector	Compatible Tube	Vinyl
Connection 2 Type	Barbed	Connection 1 Size	1/4
Configuration	Tube to Tube	Brand	Parker
Connection 3 Size	N/A	Color	Black
Technology	Fluid & Gas Handling	Connection 1 Type	Barbed
Body Material	Polypropylene	Connection 2 Size	1/4
Division	Fluid System Connectors Division	Vacuum Pressure Rating	-29
Configuration	Barb to Barb	Connection 2 Type	Barb
Connection 1 Style	Barb	Connection 1 Hose I.D. (inch)	1/4" (I.D.)
Connection 2 Hose I.D. (inch)	1/4" (I.D.)	Shape	Union
Body Material	Polypropylene, Black	Connection 3 Size	N/A
Connection 1 Type	Barbed	Color	Black
Connection 2 Size	1/4"	Connection 3 Type	N/A
Connection 1 Size	1/4"

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
