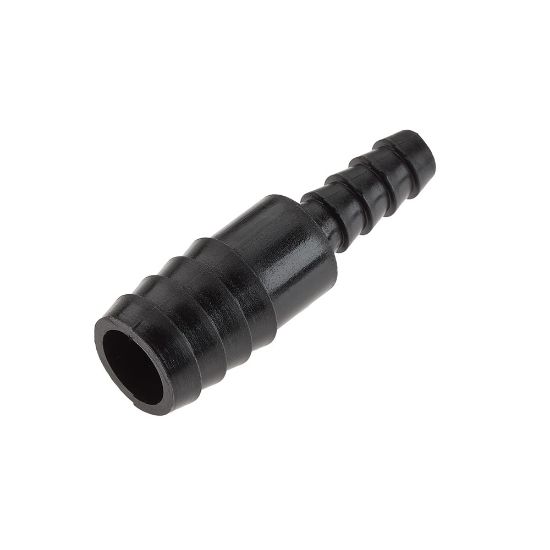

Parker 322HB-2PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 322HB-2PP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Media	Water, Air, Other Compatible Fluids
Specifications Met	FDA, NSF-51	Maximum Operating Pressure	125 psi
Maximum Operating Temperature	104 °C	Minimum Operating Temperature	10 °F
Application	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing	Tube Material	Vinyl, Polyurethane, Rubber Hose
Brand	Parker	Color	Black
Connection 3 Size	N/A	Vacuum Pressure Rating	-29
Connection 2 Size	1/8	Body Material	Polypropylene
Compatible Tube	Vinyl	Connection 1 Size	1/8
Configuration	Tube to Tube	Connection 2 Type	Barbed
Shape	Connector	Division	Fluid System Connectors Division
Connection 1 Type	Barbed	Technology	Fluid & Gas Handling
Connection 3 Type	N/A	Configuration	Barb to Barb
Connection 2 Type	Barb	Connection 1 Style	Barb
Connection 1 Hose I.D. (inch)	1/8" (I.D.)	Shape	Union
Body Material	Polypropylene, Black	Connection 2 Hose I.D. (inch)	1/8" (I.D.)
Color	Black	Connection 2 Size	1/8"
Connection 3 Type	N/A	Connection 1 Type	Barbed
Connection 3 Size	N/A	Connection 1 Size	1/8"

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
