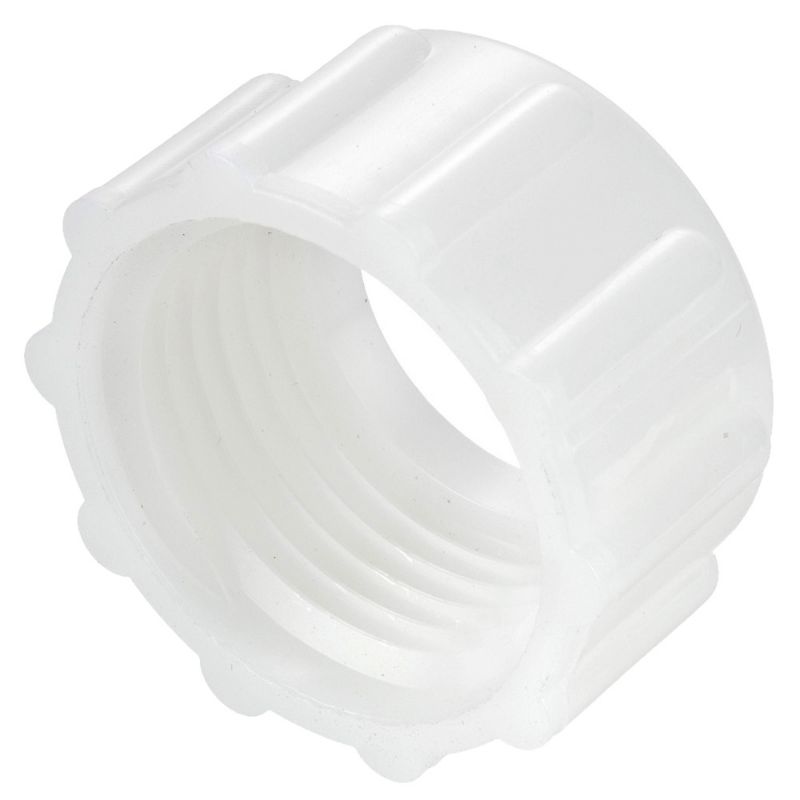

Parker 31GH-12N - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 31GH-12N

$0.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-40 °F
Application	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing	Shape	Garden Hose Nut
Division	Fluid System Connectors Division	Connection 1 Type	Female Garden Hose
Connection 3 Size	N/A	Tube Material	Vinyl, Polyurethane, Rubber Hose
Specifications Met	FDA, NSF-51	Connection 1 Size	3/4
Media	Water, Air, Other Compatible Fluids	Body Material	Nylon
Connection 2 Type	N/A	Vacuum Pressure Rating	-29
Configuration	Pipe to Pipe	Connection 2 Size	N/A
Dimensional Weight	0.5755 lb	Division	Fluid System Connectors Division
Maximum Operating Temperature	93 °C	Technology	Fluid & Gas Handling
Maximum Operating Pressure	8.5 bar	Compatible Tube	Vinyl
Connection 3 Type	N/A	Color	White
Brand	Parker	Connection 2 Hose I.D. (inch)	n/a
Body Material	Nylon,White	Connection 1 Thread Size	3/4"
Connection 1 Hose I.D. (inch)	n/a	Product Style	Garden Hose Thread
Connection 1 Type	Female Garden Hose	Connection 2 Type	N/A
Connection 1 Size	3/4"	Shape	Garden Hose Nut
Connection 2 Size	N/A	Connection 3 Type	N/A
Color	White	Configuration	Pipe to Pipe
Connection 3 Size	N/A
