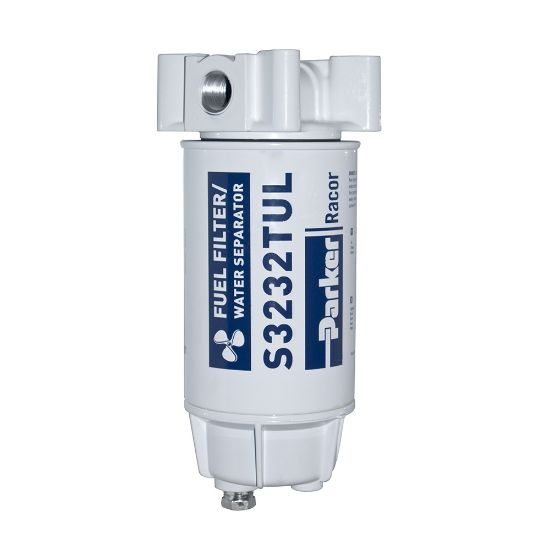

Picture of Parker 3120R-RAC-32 - Marine Fuel Filter Water Separator – Racor Spin-on Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 3120R-RAC-32 - Marine Fuel Filter Water Separator – Racor Spin-on Series

Racor Marine Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. UL-approved versions available.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 3120R-RAC-32
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionEngine Mobile Original Equipment DivisionBrandRacor
Operating Temperature-40 to 121 °CFilter Element Type10 Micron Aquabloc Spin-on
Head MaterialPower Coated Aluminium AlloyMounting TypeBracket Included
Number of Ports1 Inlet / 1 OutletMaximum Fluid Temperature88.0 °C
Weight2.0 lb / 0.5 KgDepth5 inch
Width10.2 cmHeight26.4 cm
Product SeriesGasoline Spin-onCompatible ElementS3232TUL = 10 micron<br/>S3232 = 10 micron
Clean Pressure Drop1.38 kPaMaximum Operating Pressure7 psi
Micron Rating98% @ 10 MicronBowl MaterialAluminum Bowl
Filtered MediumGasolineUL CertificationYes
Integral Primer PumpNoFlow Rate120 gph / 454 lph
Port Size1/2"-14 NPTF
