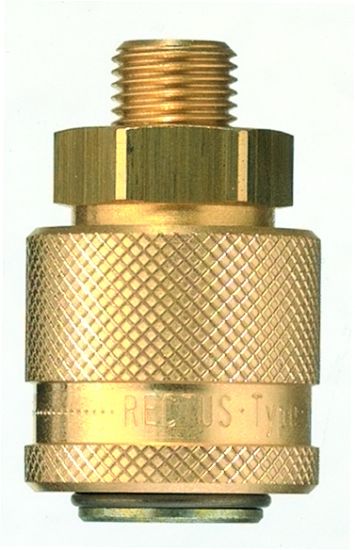

Parker 30KAAN17SPN - Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30KAAN17SPN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-4 °F	Division	Quick Coupling Division
Seal Material	Nitrile	Maximum Operating Temperature	212 °F
Maximum Operating Pressure	300 psi	Lock Type	Locking balls
Media	Compressed Air	Sleeve Type	Push to Connect
Application	High Flow	Specifications Met	ISO 6150B
Division	Quick Coupling Division	Valve Type	Valved
Plating Type	Nickel Plated	Fitting Connection Type	Male Threads
Body Material	Steel, Nickel-plated	Connection Thread Size	3/8"-18
Thread Style	Male	Connection Type	NPTF
Hose I.D.	n/a	Coupling Half	Coupler
Body Material	Steel, Nickel-plated	Body Size	3/8"
