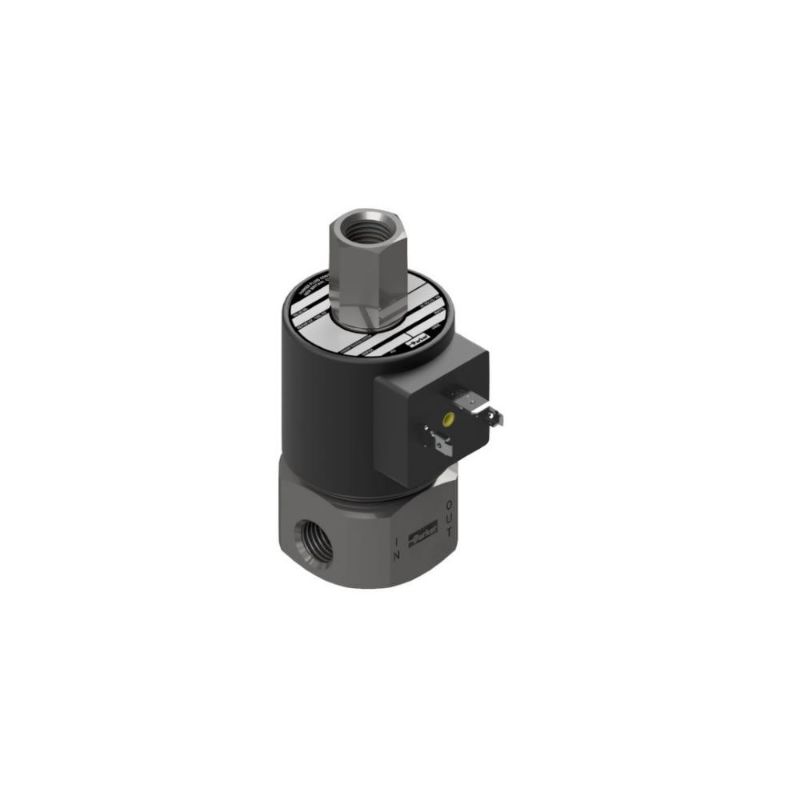

Parker 30CU04AV7D7F - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30CU04AV7D7F

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid Control Division
Actuation Type	Direct Acting	Minimum Pressure Differential	0
Seal Material	FKM	Input Voltage	110/50
Body Material	Stainless Steel 303	Specifications Met	CURus General Purpose
Orifice Size	1/32	Main Flow Coefficient	0.02
Port Size	NPT 1/4	Power Consumption	10
Maximum Fluid Temperature	185	Maximum Ambient Temperature	150
Coil Specifications Met	NEMA 4	Exhaust Flow Coefficient	0.02
Function	3-Way	Installation	IOM7221
Maximum Pressure Differential	435	Configuration	Universal
Preventive Maintenance Kit	7R010	Coil Type	DIN 43650A / ISO 4400
Seal Material	FKM	Voltage	120/60, 110/50
Body Material	303 Stainless Steel	Port Size (inch)	1/4 NPT
Minimum Pressure Differential (psi)	0	Function	3-Way
Configuration	Universal	Orifice Size (inch)	1/32
Maximum Operating Pressure Differential (psig)	435
